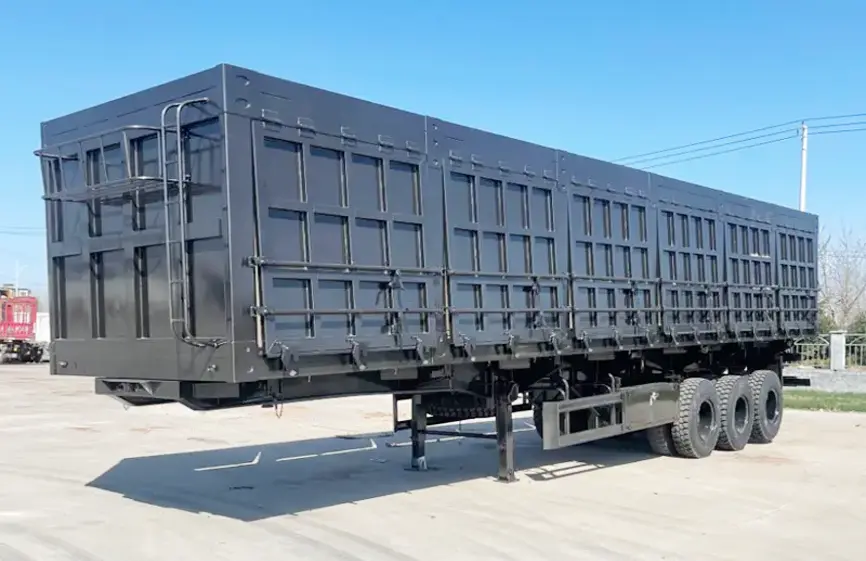

3 Axle Side Wall Semi Trailer

Overall L*W*H:
12000*2500*1550mm
Trailer Sides:
1800mm
Loading capacity:
≤60T
Rim:
9.00-22.5 or9.75-22.5
Platform:
3mm-thick checkered plate
Request for Price
Overview

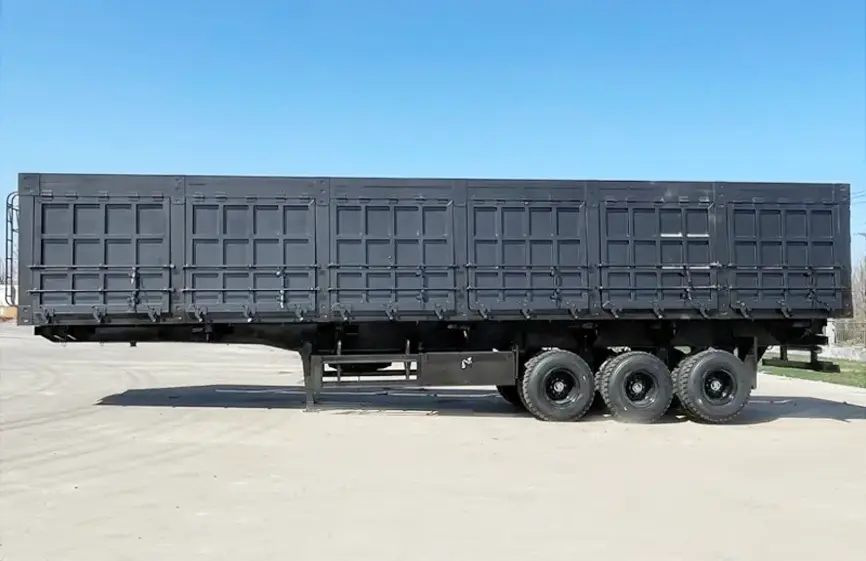

3 Axle Side Wall Semi Trailer (2) – 副本
3 AXLE SIDE WALL SEMI TRAILER

Durable Construction: Made from high-quality steel or aluminum, these trailers are built to withstand heavy loads and harsh conditions. The side walls are often reinforced with additional bracing to ensure structural integrity.

Increased Payload Capacity: With three axles, these trailers can carry more weight than their two-axle counterparts, making them ideal for long-distance hauls or transporting large, heavy items.

Improved Stability: The extra axle provides better traction and stability, especially when navigating steep grades or uneven terrain. This enhances safety for both the driver and other road users.

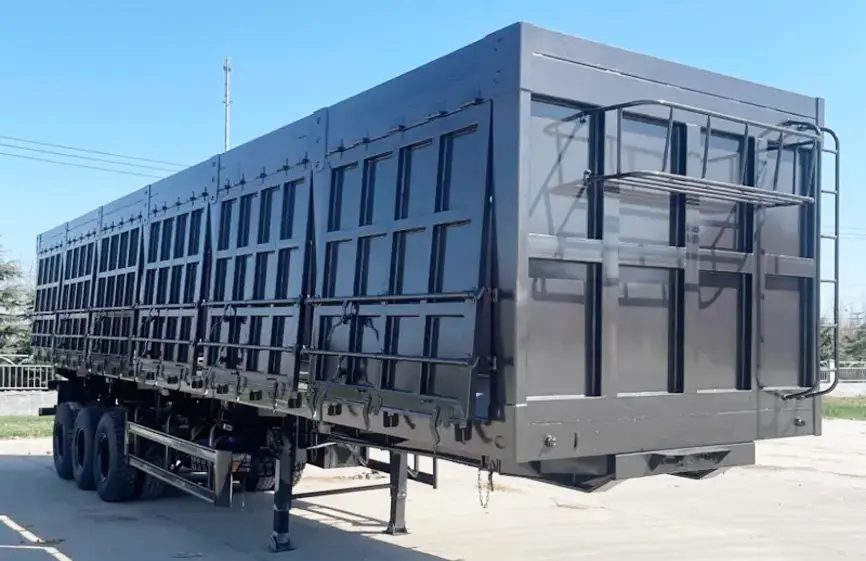

3 Axle Side Wall Semi Trailer (1)
3 AXLE SIDE WALL SEMI TRAILER

Versatile Applications: These trailers can be used in various industries, including construction, manufacturing, and logistics, to transport a wide range of goods such as building materials, machinery, and oversized items.

Customization Options: Many manufacturers offer customization options to tailor the trailer to specific needs, such as adding ramps, shelving, or specialized equipment for handling unique cargo.

Maintenance and Service: Regular maintenance and inspections are essential to ensure the safe and efficient operation of a 3-axle side wall semi trailer. This includes checking tire pressure, inspecting brakes, and ensuring proper lubrication of all moving parts.

Specifications
3 AXLE SIDE WALL SEMI TRAILER
Material Main beams Q345B, upper flange: 14mm, middle: 8mm, down: 16mm
Side Tipper Truck Dimensions 8000-12000*2500*1500mm(length*width*height)
Cylinder 175, 191, 202, 214 / 4TG, 5TG
Brake System WABCO Valve with big chamber
Axles 13T/16/20T BPW or FUWA brand
King Pin 2 inch or 3.5 inch JOST Brand
Side Tipper Loads 30T, 40T, 45T, 50T, 60T
LandingGears JOST brand two-speed, Manual operating heavy duty 28ton
Suspension Bogie suspension, spring suspension, Air suspension
Floor 3mm,4mm,6mm diamond steel plate
ElectricalSystem 24v, 7core socket, lights according to European standards (suitable for all market)
Twist lock 8 or 12 sets
Functions Transport container, loose cargo, bulk cement, bulk rice,etc
Other Side Tipper Trailer parts 1 tool boxs, 1 spare tire carrier
Any parts fitted could according to clients request, contact us to get more.
FAQ
Are you a dealer or a factory?
We are the official SINOTRUK factory.
I want to ship the truck by container. Is it possible?
Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.
How is the product quality?
All trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to become your agent in my country. Is that acceptable?
Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.
How is your company's service, especially after-sales service?
SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.
What are your payment terms?
You may choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: within 30 working days after receiving the deposit.
