Sinotruk 3 Axle 50Ton Low Bed Trailer

Overall Dimension:
13000*3000*2950mm
Payload :
25T~80T
Tare weight:
11.5T
G.V.W.R.:
60,000kg
Volume :
42000L
Axle:
13Ton, Fuwa brand
Buy The Truck
Overview

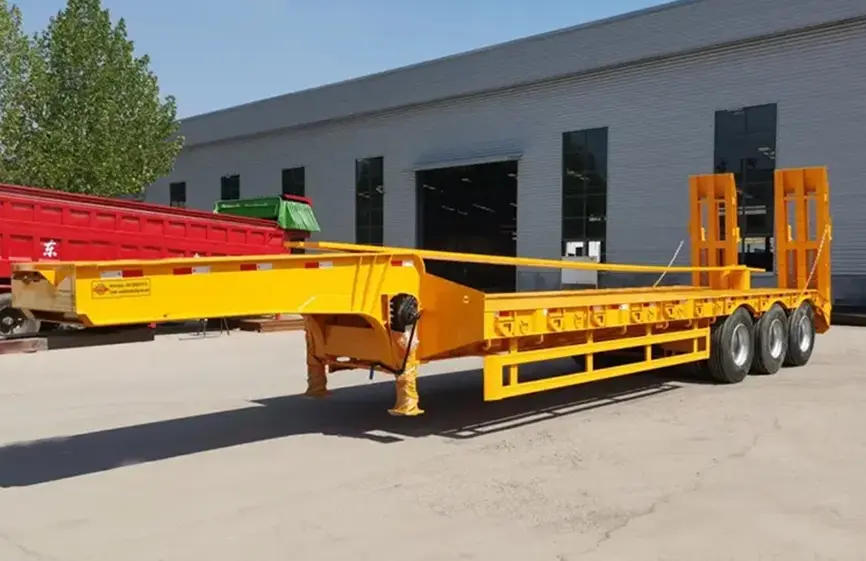

Sinotruk 3 Axle 50Ton Low Bed Trailer-1
Sinotruk 3 Axle 50Ton Low Bed Trailer

Sinotruk 3 Axle 50Ton Low Bed Trailer is the an popular truck trailer designed for loading excavator, loader, bulldozer and other heavy machinery.

We have two kind of low bed trailer for the customers choose, first is the flat deck model(orange one), this model is better for carry the machinery with the longer length but the lower height body, in some country they call this as semi lowbed trailer.  Another is the hollow deck model(yellow one ), it means the loading deck is special lower than the tire top height, this model is better for carry the machinery with very high body, to cross the lower bridge or tunnel.

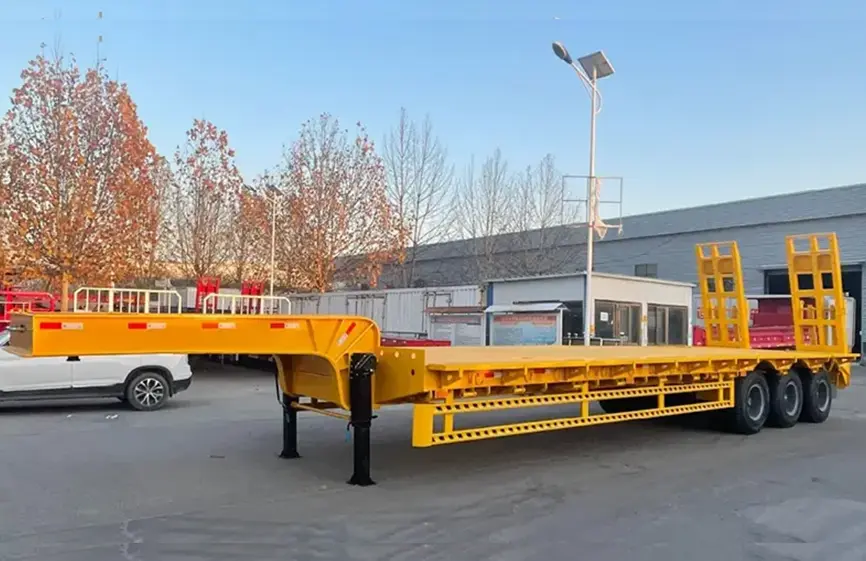

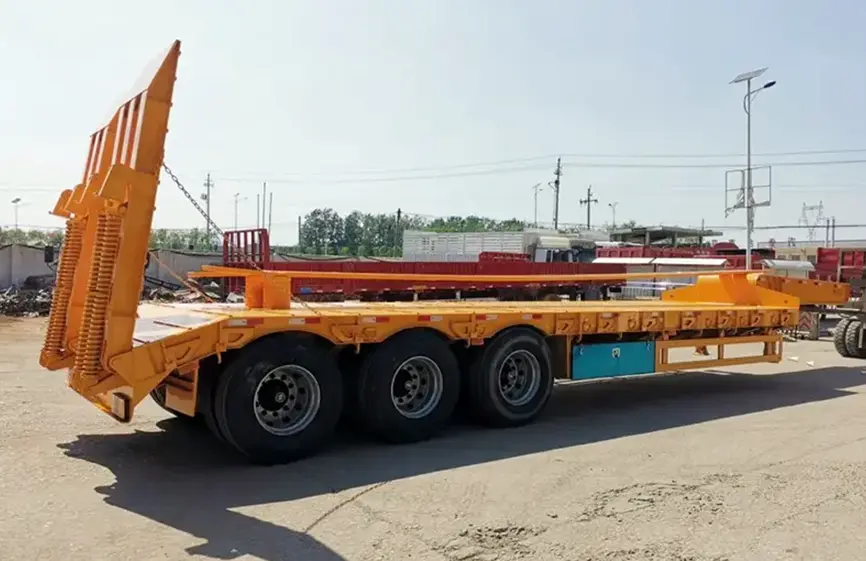

Sinotruk 3 Axle 50Ton Low Bed Trailer-2
Sinotruk 3 Axle 50Ton Low Bed Trailer

Sinotruk 3 Axle 50Ton Low Bed Traileris known as a lowboy trailer, lowbed trailer, low bed lorry, or lowboy truck.  Our lowbed trailer use Q345B carbon
high-tensile steel material. We adopt world famous brand of parts, like FUWA alex, JOST, WABCO braking valve etc. We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc.

Specifications
Sinotruk 3 Axle 50Ton Low Bed Trailer
Weight: Tare Weight 11.5T
Loading capacity 50 T
Total weight 61.5 T
Dimensions: Outside dimension 13000*3000*2950 mm (The final dimensions depend on the final design drawings)
Frame:   Design/welding technology Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
Main beam Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 20mm, width 140mm.Middle Flange thickness 12mm;
Cross beam Heavy duty Special U steel
Side beam 250mm high I beam
Floor 5 mm thickness chequer plate
Rear ladder (ramps) Two pieces spring steel ladder, (Q345B steel)
OEM parts:       Axle 3 *13T capacity, FUWA brand (Chinese best brand)
King Pin 2.00’’/3.5’’ bolting king pin, JOST brand
Suspension Heavy duty undermount suspension with equalizers, American design (high-strength type)
Steel Spring 10pcs leaf spring, 13mm thickness, 90mm width
Landing legs JOST brand, manual operation landing legs with sand shoe
Tire specs 10R20, Triangle brand (Chinese famous brand)
Rim 6.5(Chinese famous brand)
Number of wheel 13 pieces(including one spare wheel)
Brake system WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.
ABS system Without(Can be choose freely,450 USD/set)
Electrical One unit of 24V 7-pin ISO 1185 socket; LED lights
Miscellaneous: Painting color advised by client
Marking Standard
Side Guard Standard
Spare Tire Carriers Two set of heavy duty spare wheel carriers
Tools box One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer
