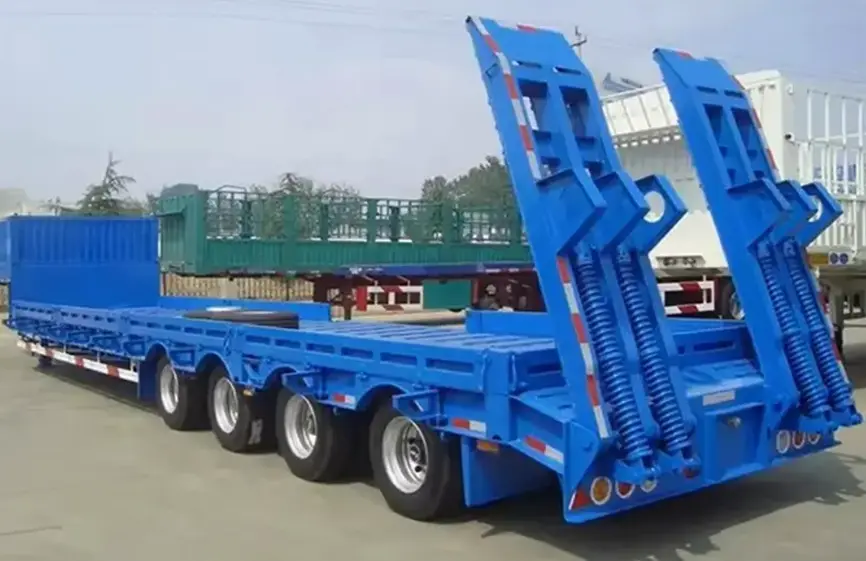

Sinotruk 4 Axle 40ft Lowbed Semi Trailer-1

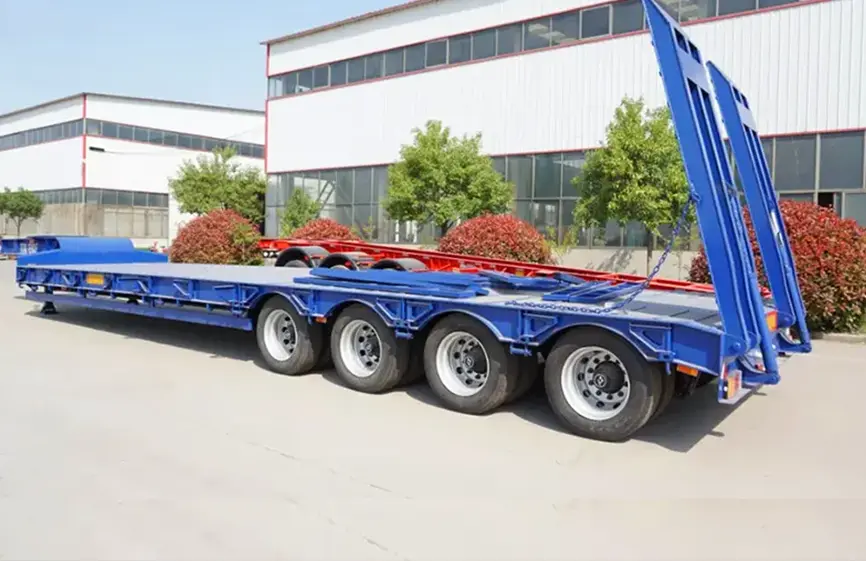

Sinotruk 4 Axle 40ft Lowbed Semi Trailer-2

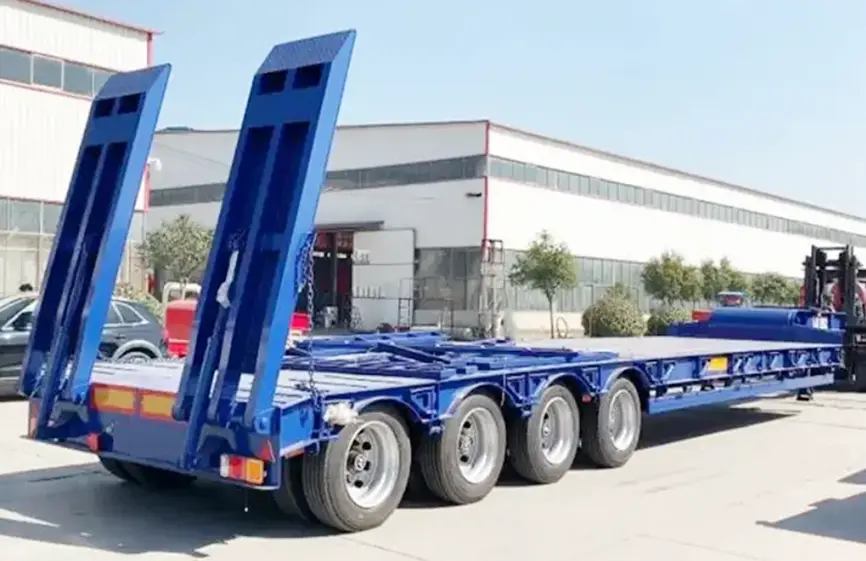

Sinotruk 4 Axle 40ft Lowbed Semi Trailer-3

Sinotruk 4 Axle 40ft Lowbed Semi Trailer

Overall Dimension:

14000*3000*1100mm

Payload :

80000kg

Tare weight:

about 15 tons

Rims :

8.5-20, 9.0-20

Main Beam:

Height 500mm Q345 carbon steel

Axle:

13Ton, Fuwa brand

Buy The Truck

Overview

Sinotruk 4 Axle 40ft Lowbed Semi Trailer

As a core product line of Sinotruk, the Sinotruk 4 Axle 40ft Lowbed Semi-Trailer is designed specifically for transporting oversized cargo. Sinotruk 4 Axle 40ft Lowbed Semi Trailer 8.5-ton reinforced suspension system and W-shaped longitudinal beam structure can stably carry 120-ton construction machinery, making it ideal for large-scale logistics applications such as wind turbine equipment and prefabricated bridges.

Sinotruk 4 Axle 40ft Lowbed Semi Trailer: Technical Highlights

Adopting the gooseneck design specifically designed for Sinotruk 4-Axle 40-foot lowbed semi-trailers, the cargo platform is only 0.9 meters high.

The modular deck allows for width adjustment from 3 to 5 meters.

It comes standard with BPW axles and ABS+EBS intelligent braking systems.

Specifications

Sinotruk 4 Axle 40ft Lowbed Semi Trailer (Customerize and OEM Service Available)
Product Name	4 axles lowbed semi trailer
Size(mm)	1400030001100
Payload	80000KG
Plate	5mm checked plate
Axles	4 * 13ton capacity
	(Brand optional)
Ladder	Hydraulic ladder or Mechanical spring ladder
Main beam	Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ;
	Material is Q345B Steel.
Side beam	250mm I beam; 20mm channel steel ( Material is Q235steel ).
Bottom Platform	4mm thickness diamond steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
	(specially intended for overseas markets)
Tire	12R22.5 / 11.00R20 8pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin	2”/3.5” bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Accessory	One tooling box with a set of standard trailer tool
Painting	1.Sand blasting processing clean rust.
	2.Coat of anticorrosive primer.
	3.Coats of finish urethane paint.
	4.Color as customer choice.
Other Descriptions	The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
	transportation.
Usage	It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
	power plant equipment or machine, and all sorts of steel products.
Other Specifications	It’s concave structured with tyre appeared style, the height of the cargo’s carrying platform from ground is 900mm, (ladders
	belong to optional components), with the overall height of 1710 mm.
Remark	We can design model according to client’s requirement

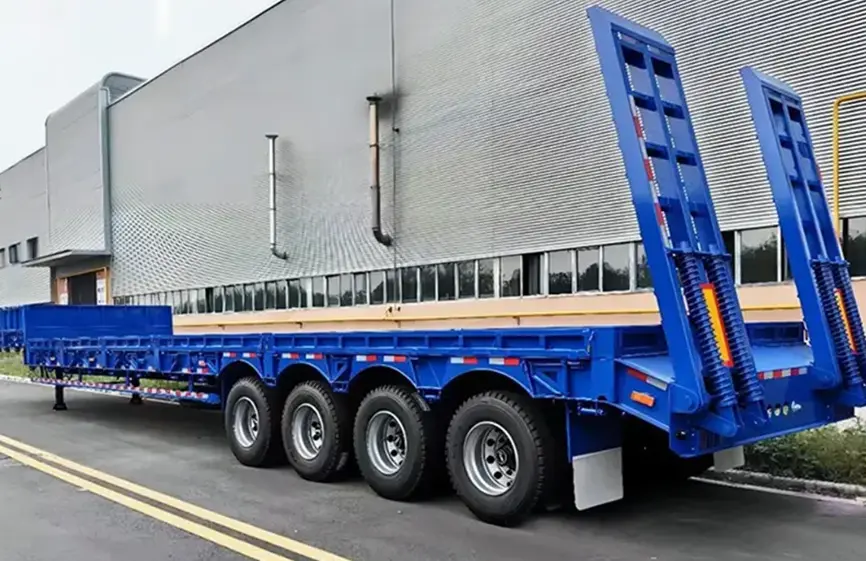

Gallery

Sinotruk 4 Axle 40ft Lowbed Semi Trailer has successfully completed multiple cross-border transformer transportation missions. Its ±15° swing angle achieved by hydraulic suspension is particularly suitable for rugged mountainous road conditions.
