Sinotruk Fence Cargo Semi Trailer

Payload:
60 - 80tons, customized
side panel:
4m m flat plate NM450, 2000mm high
Axles:
3-6 Axle, 13T
Rim:
9.00-22.5 12pcs
Wheelbase(mm):
9000*2500*3600mm
Request for Price
Overview

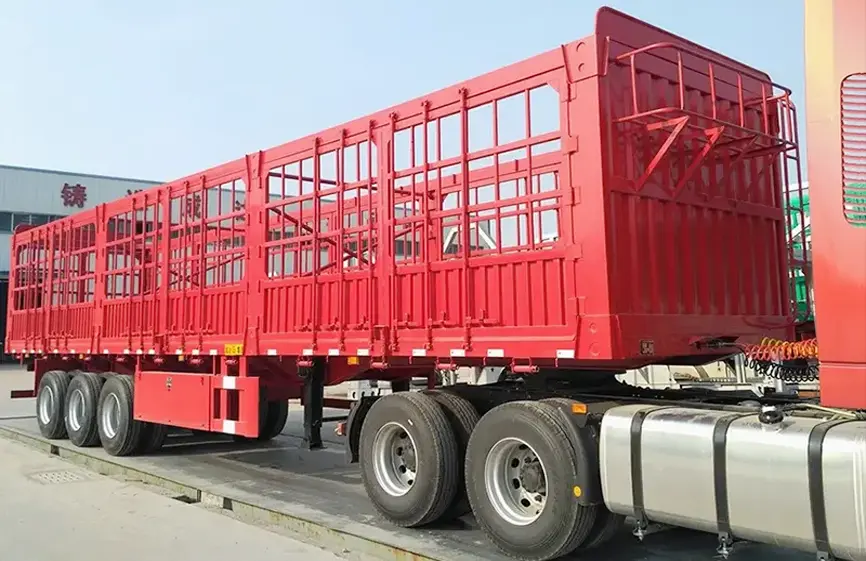

SINOTRUK FENCE CARGO SEMI TRAILER (2)
SINOTRUK FENCE CARGO SEMI TRAILER

The Sinotruk Fence Cargo Semi Trailer features a sturdy and durable structure, ensuring the safety and integrity of the load during transportation. The fence surrounding the cargo area provides an additional layer of protection against theft, weather conditions, and potential damage from external factors.

SINOTRUK FENCE CARGO SEMI TRAILER (1)
SINOTRUK FENCE CARGO SEMI TRAILER

Sinotruk fence cargo semi trailer is equipped with various advanced technologies and safety features, including a hydraulic braking system, air suspension, and an anti-theft alarm system. These features not only enhance the overall performance of the trailer but also contribute to the safety and security of the cargo being transported.

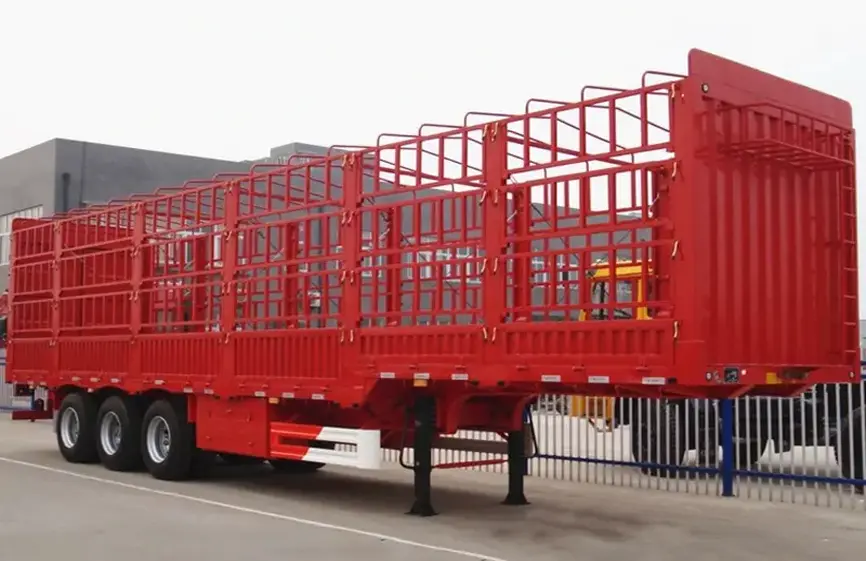

SINOTRUK FENCE CARGO SEMI TRAILER (3)
SINOTRUK FENCE CARGO SEMI TRAILER

In addition, the Sinotruk Fence Cargo Semi Trailer is designed to be highly versatile and can be easily adapted to different types of cargo and transportation requirements. Its large loading capacity and adjustable fence height make it suitable for a wide range of applications, from local deliveries to long-distance hauls.

Specifications
SINOTRUK FENCE CARGO SEMI TRAILER
Type Cargo Semi Trailer
Function 2×20 ft container or 1x40ft container or others goods
Overall dimensios 12500x2500x1600 mm
Loading weight 40,000 – 60,000 kg
Side wall and Fence 600mm+600mm, size is optional
Container twist lock 12 pcs
Main beam Q345B steel
The height of the beam is 50mm, upper plate is 14mm,
down plate is 16mm, middle plate is 8mm
Side beam 16 U shaped steel or I shaped steel
Chassis
Axle brand 13 ton
Axle number 3
Landing gear Standard 28 ton
Suspension system Mechanical suspension
Steel spring 2010/10/10
Tire 12.00R22.5 tubeless tire
Tire quantity 12
Frame
Platform thickness 3 mm diamond plate
Accessories
Brake 6 big chamber brake system, without ABS
Tool box 1 unit
Spare wheel carrier 2 units
Side marker lamp LED type
Voltage 24V
Receptacle 7 ways
FAQ
Are you a dealer or a factory?
We are the official SINOTRUK factory.
I want to ship the truck by container. Is it possible?
Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.
How is the product quality?
All trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to become your agent in my country. Is that acceptable?
Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.
How is your company's service, especially after-sales service?
SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.
What are your payment terms?
You may choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: within 30 working days after receiving the deposit.
