Sinotruk Howo 340 NX 6x4 Tractor Truck

Model:
ZZ3257V364JB1
Series:
Sinotruk howo NX
Engine model:
WP10.380E22
Gross weight:
41000kg
Engine variant power:
340HP
Transmission :
Sinotruk HW19710
Buy The Truck
Overview

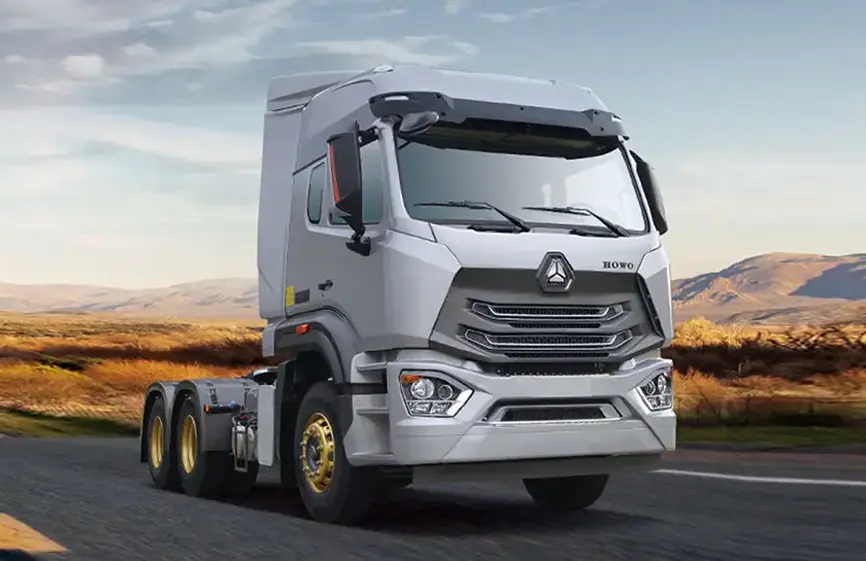

Sinotruk Howo 340 NX 6×4 Tractor Truck-3
Sinotruk Howo 340 NX 6x4 Tractor Truck Features

Sinotruk Howo 340 NX 6×4 Tractor Truck can prevent the idling of the driving wheel when the vehicle is driving on the wet road such as snow, so that the Sinotruk Howo 340 NX 6×4 Tractor Truck can start and accelerate smoothly, and can also ensure smooth acceleration performance on the wet road to prevent transverse movement or tail dumping. The Sinotruk Howo 340 NX 6×4 Tractor Truck uses a high top and flat floor design, and the interior space is practical and comfortable.

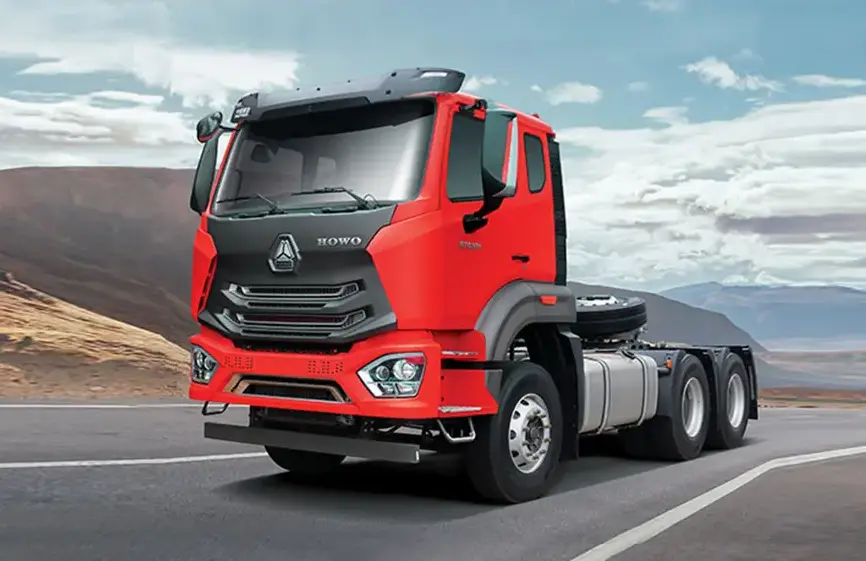

Sinotruk Howo 340 NX 6×4 Tractor Truck-2
Sinotruk Howo 340 NX 6x4 Tractor Truck

The Sinotruk Howo 340 NX 6×4 Tractor Truck features an advanced aerodynamic design, resulting in excellent fuel economy and significantly reduced operating costs. Furthermore, its high-strength frame and optimized suspension system ensure increased load capacity and driving safety.

 Whether it’s efficient logistics or heavy-load transport, the Sinotruk Howo 340 NX 6×4 Tractor Truck is an ideal choice.

Specifications

Engine

Engine type: Weichai WP10.5E50 Euro 5 diesel engine
Displacement: 9.7 liters
Horsepower: 340 hp (328 kW)
Torque: 2,000 Nm (1,475 lb-ft)
Emission standard: Euro 5

Transmission

Transmission type: Fast Gear 12JS200T 12-speed manual transmission
Clutch type: 430 mm (16.9 in) diaphragm spring clutch
Drivetrain
Drive configuration: 6×4
Axle type: Single-stage rear axle with differential lock
Suspension type: Multi-leaf spring suspension

Brakes

Brake type: Air brakes with WABCO valve
Front brakes: Disc brakes
Rear brakes: Drum brakes
Wheels and Tires
Tire size: 12.00R20
Number of tires: 10 + 1 spare

Cab

Cab type: Howo NX cab
Suspension type: 4-point full floating air suspension
Features: Adjustable steering wheel with various heights and angles, air suspension seat, central door lock, electric window lifter, power mirror

Dimensions

Overall length: 10,800 mm (425.2 in)
Overall width: 2,500 mm (98.4 in)
Overall height: 3,700 mm (145.7 in)
Wheelbase: 3,225 mm (126.9 in) + 1,350 mm (53.1 in)
Track width: Front: 2,022 mm (79.6 in), Rear: 1,830 mm (72 in)

Performance

Maximum speed: 90 km/h (56 mph)
Gradeability: 25%
Fuel consumption: 25-30 liters per 100 kilometers (9.5-11.8 mpg)

Additional Features

Air conditioning
Power windows
Rearview camera
ABS and ESC
