Sinotruk Howo 420 TX 8x4 Dump Truck

Model:
ZZ3317N356GB1
Series:
Sinotruk Howo TX
Engine model:
Weichai WP10H400E62
Transmission:
Sinotruk HW19712CL
Engine variant power:
420HP
Up-body configuration :
18-28CBM
Buy The Truck
Overview

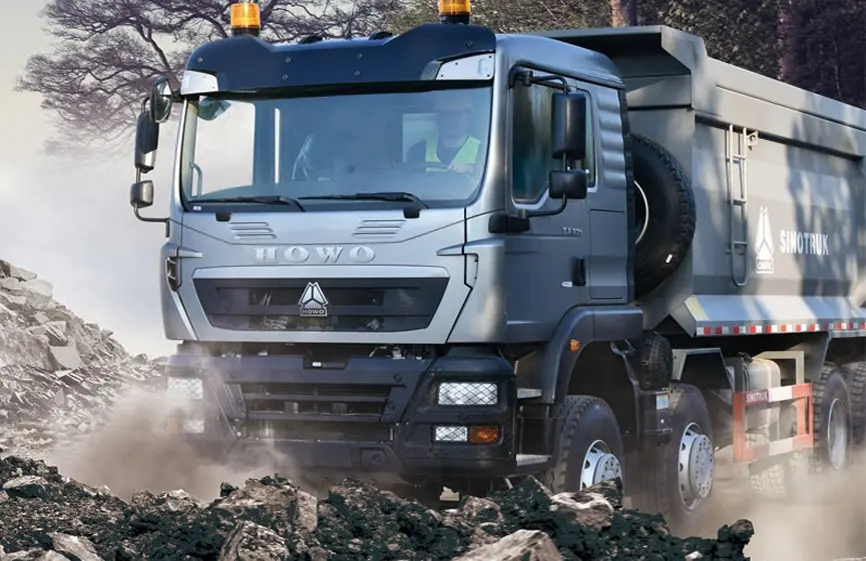

Sinotruk Howo 420 TX 8×4 Dump Truck-3
Sinotruk Howo 420 TX 8x4 Dump Truck

The Sinotruk Howo 420 TX 8×4 Dump Truck features the latest cab design from the TX series, providing drivers with a more comfortable operating environment and a wider field of vision.

Engineering companies have shown strong interest in the Sinotruk Howo 420 TX 8×4 Dump Truck, primarily due to its 8×4 drive configuration, which is well-suited to China’s complex road conditions. The Sinotruk Howo 420 TX 8×4 Dump Truck leads the industry in both load capacity and fuel economy.

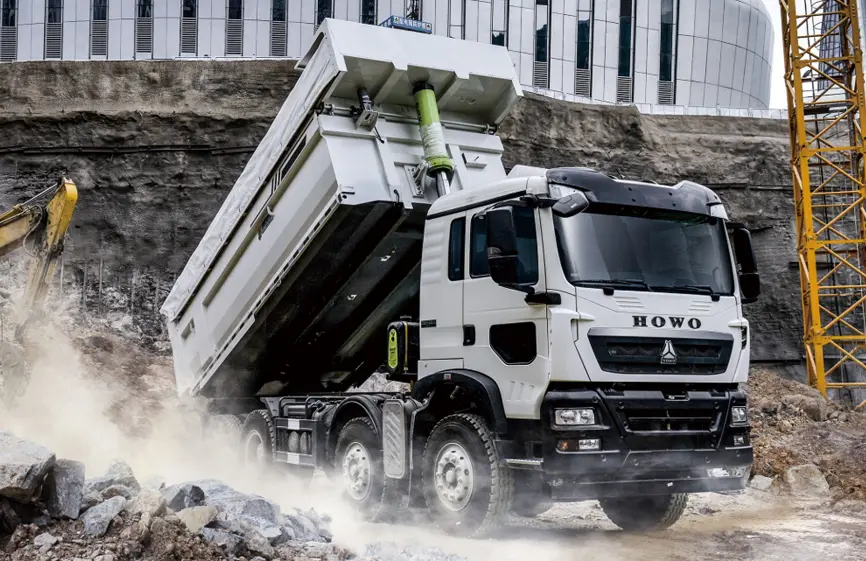

Sinotruk Howo 420 TX 8×4 Dump Truck-1
Sinotruk Howo 420 TX 8x4 Dump Truck

In terms of after-sales service, the Sinotruk Howo 420 TX 8×4 Dump Truck has a nationwide service network. After purchasing the Sinotruk Howo 420 TX 8×4 Dump Truck, international customers can enjoy professional maintenance services nearby to ensure the efficient operation of the vehicle.

Specifications
Product name: Sinotruk Howo 420 TX 8×4 Dump Truck
Configuration number: ZZ3317N356GB1
Dimensional parameters (mm)
Length: 9075mm Width: 2500mm Height: 3280mm Axle length: 3525mm
Mass parameter (kg)
GVW:31000KG Preparation quality: 11000KG GCW:







Cabin
Cabin Model :TX-F Direction of steering wheel: mounted on the left Cab features: Medium-wide body convex floor extended flat roof
Engine
Engine model: WD615.47 371hp, WP10 380hp Emission level: National II Displacement (L): 10L Rated power/rated speed: 273 kw/2200r
Maximum torque: 1500N.m
Gear-box
Gearbox Model: HW19710 Type : MT Maximum input torque 1900N.m Gears: 10 gears
Speed ratio: 14.283
Front axle
Front Model: VGD95 Rated shaft load: 9500kg Brake type: Drum brake Hub bearing type: Standard bearing
Rear axle
Rear Model: MCP16ZG Speed ratio: 5.26 Rated axle load: 16000KG x2 Axle type: Wheel-hub reduction axle (self-developed)
Axle shell type: housing Cast axle Brake type: Drum brake Hub bearing type: Oil lubrication
Other configurations
Suspension description:





Enhanced multi-leaf springs at front and rear (11/11/12)

Section size: double-layer





frame (8+8/300)

Volume: 400LFuel tank Wheels: front and  rear  reinforced wheels
Tyre type: Steering gear: Bosch steering machine ABS control system: with ABS Intake system:Engineering air intake system (oil filter)
Standard exhaust system
