HOWO 4X2 116hp Fences Cargo Light Truck

Model:
ZZ1047D3414C1
Engine Horsepower:
116HP
Maximum speed:
95 km/h
Loading capacity:
3-5T
Fuel tank :
120L
Request for Price
Overview

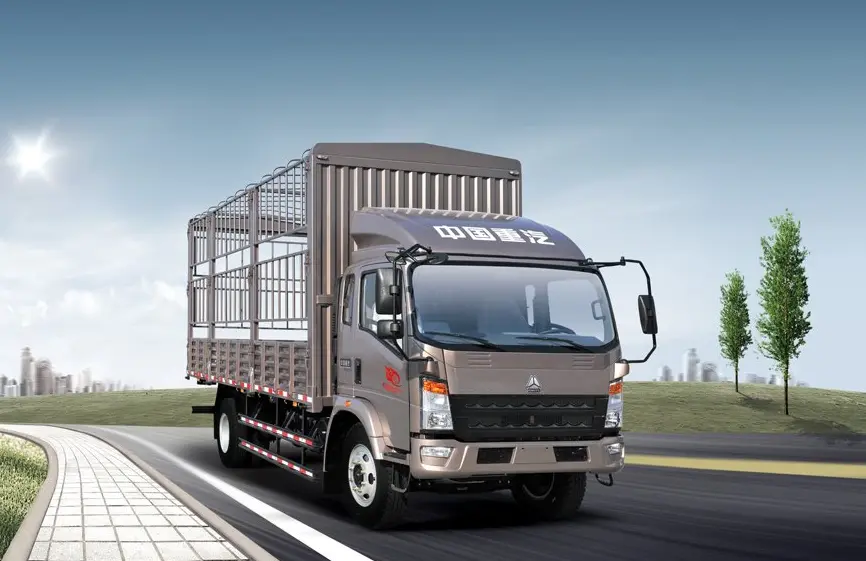

Sinotruk HOWO 4X2 116hp Fences Cargo Light Truck
Sinotruk HOWO 4X2 116hp Fences Cargo Light Truck Features

Sinotruk HOWO 4X2 116hp Fences Cargo Light Truck has the advantages of high load-bearing capacity, high stability, and low fuel consumption. Sinotruk HOWO 4X2 116hp Fences Cargo Light Truck adopts a high-power engine and can be matched with a multi-shift gearbox to reduce fuel consumption. By adjusting the rear axle speedratio,the economic speed of the entire vehicle is improved.

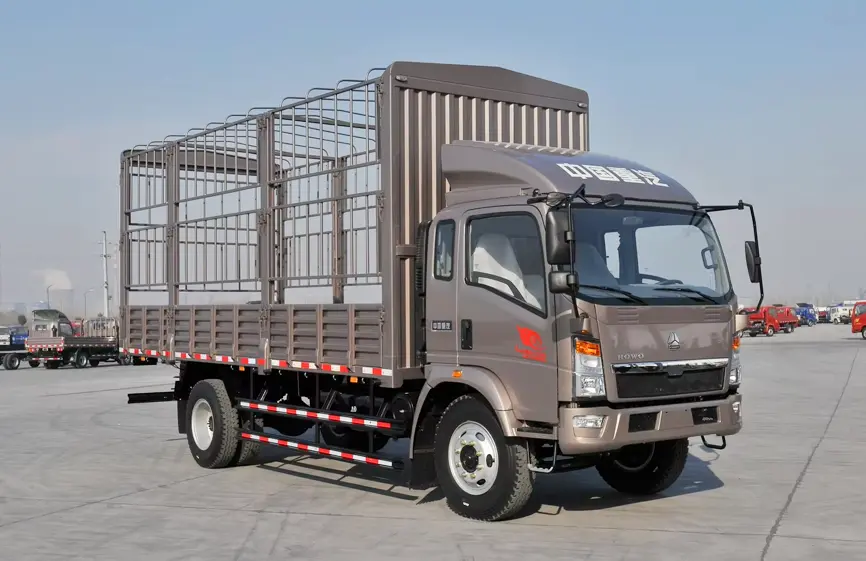

Sinotruk HOWO 4X2 116hp Fences Cargo Light Truck-1

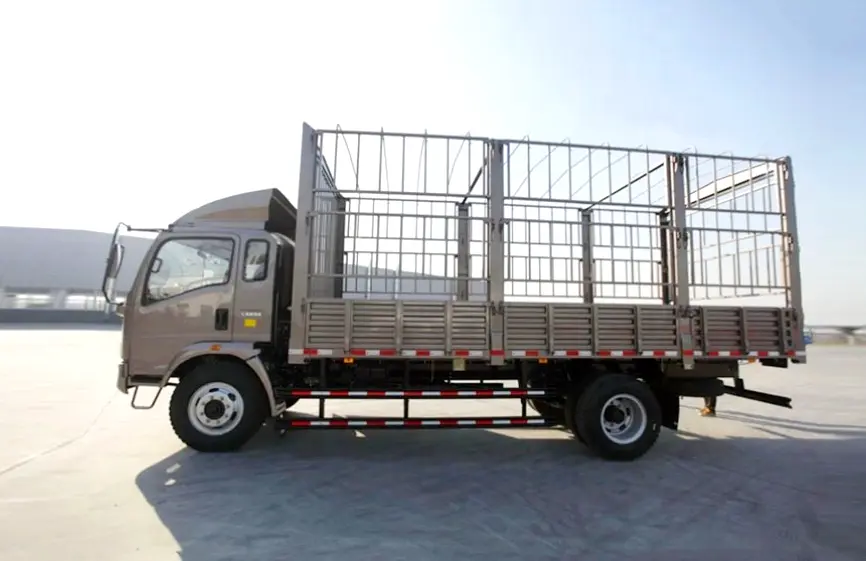

Sinotruk HOWO 4X2 116hp Fences Cargo Light Truck

Sinotruk HOWO 4X2 116hp Fences Cargo Light Truckis SINORUK’s business department designed according to its mature technology, combined with working conditions, absorbing international advanced technology and developing a series of high-end light trucks.

Specifications

ENGINE

Manufacturer: YUNEI

Diesel:4-strote direct injection diesel engine

Engine model: YN4102QBZL engine, Euro II emission standard, water-cooled, four strokes, 4 cylinders in line with water cooling. Turbocharged and intercooling, directly injection

Max output:116HP(81kw)

Displacement:3.298L

CLUTCH

Φ300 diaphragm single-plate dry coil-spring clutch.

TRANSIMISSION

Model: WLY6T100, 6forward & 1reverse

FRONT AXLE

2.4T Forging I beam

REAR AXLE

4.2T Pressed welding axle housing

STEERING

Left hand driving

BRAKING SYSTEM

service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels

TIRES

7.00R16 Radial Tire with one spare tire.

CAB

1880 one and half row cabin, with A/C

INSTRUMENT PANEL

Active check control with indicators, with this instrument the daily manual checks on the vehicles and combined indicators of compressed pressure, coolant temperature, engine oil pressure and battery charging

DIMENSION IN (MM)

Wheel base

3360

Front/ Rear wheel track

1605/1520

Front/ Rear overhang

1160/1475

Approach/ Departure angle(°)

20/18

Dimension(Lx W x H)(unloaded

6995×2100*2650



FAQ
Are you a dealer or a factory?
We are the official SINOTRUK factory.
I want to ship the truck by container. Is it possible?
Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.
How is the product quality?
All trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to become your agent in my country. Is that acceptable?
Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.
How is your company's service, especially after-sales service?
SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.
What are your payment terms?
You may choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: within 30 working days after receiving the deposit.
