Howo 4x2 Fences Light Truck

Model:

ZZ1107G3815C1

Engine:

116HP

Maximum speed:

95 km/h

Overall Dimensions(LxWxH):

6995×2400×3150mm

Request for Price

Overview

Sinotruk Howo 4x2 Fences Light Truck

As a classic model under the Sinotruk brand, the Sinotruk Howo 4×2 Fences Light Truck has become a key force in urban delivery thanks to its excellent value for money. Equipped with a 116 horsepower engine, coupled with a 6-speed manual transmission, the Sinotruk Howo 4×2 Fences Light Truck maintains stable power even in complex road conditions.

Sinotruk Howo 4x2 Fences Light Truck

In terms of safety features, the Sinotruk Howo 4×2 Fences Light Truck is equipped with ABS+EBD braking system, anti-glare rearview mirror and reversing radar

The Sinotruk Howo 4×2 Fences Light Truck’s core advantage lies in its load-bearing system design. The combination of a high-strength steel frame, a 3.2-ton front axle, and an 8-ton rear axle enables the truck to achieve a rated load of 9.8 tons.

Specifications

MODEL	ZZ1127G4715C1
ENGINE	Manufacturer: YUCHAI
	Diesel:4-strote direct injection diesel engine
	Engine model: YC4E140-33, Euro III emission standard, water-cooled, four strokes, 4 cylinders in line with water cooling. Turbocharged and intercooling, directly injection
	Max output:140HP(103kw)
	Displacement:4.257L
CLUTCH	Φ300 diaphragm single-plate dry coil-spring clutch.
TRANSIMISSION	Model: WLY651, 6forward & 1reverse
FRONT AXLE	3.2T Forging I beam
REAR AXLE	8T Pressed welding axle housing
CHASSIS	High tensile steel, Section 232x70x7mm,width 865mm Front suspension: 9semi-elliptic leaf springs, with shock absorbers Rear suspension:12+9 semi-Elliptical leaf springs
STEERING	Left hand driving
BRAKING SYSTEM	service brake: dual circuit compressed air brake Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
TIRES	8.25R20 Radial Tire with one spare tire.
CAB	2080 one and half row cabin, with A/C
ELECTRICAL SYSTEM	Operating voltage: 24V, negative grounded Starter: 6 kW Alternator: 28V, 55A batteries: 2 x 12V, 120 Ah
DIMENSION IN (MM)	Wheel base	4700mm
	Cargo body（Lx W x H）	6250×2300×550mm,bottom 3mm,side 1.5mm
	Dimension(Lx W x H)	8445x2400x2650

Gallery

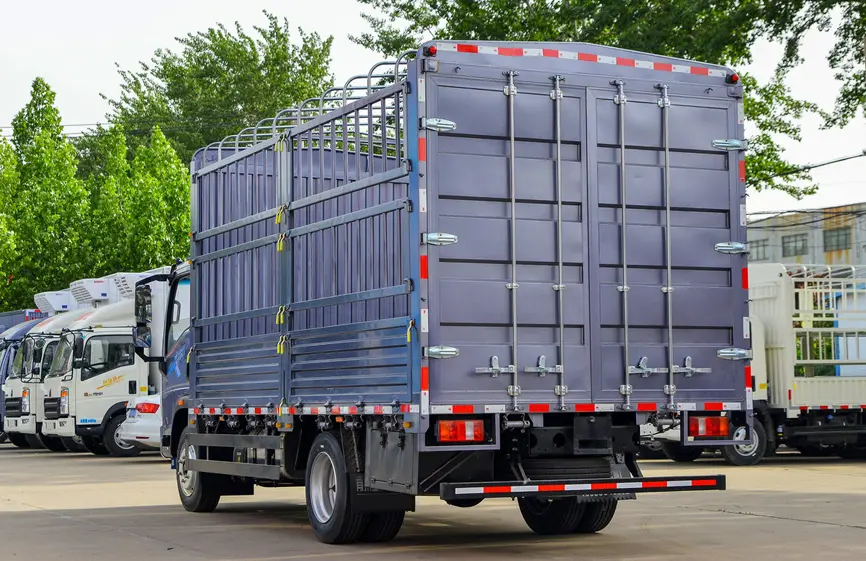

The standard rust-resistant galvanized railing cargo box provides a 4.2-meter by 2.3-meter loading space. Combined with removable side panels, it meets the diverse transport needs of building materials, agricultural products, and more.

FAQ

Are you a dealer or a factory?

We are the official SINOTRUK factory.

I want to ship the truck by container. Is it possible?

Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.

How is the product quality?

All trucks are original SINOTRUK products, and the quality is 100% guaranteed.

I want to become your agent in my country. Is that acceptable?

Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.

How is your company's service, especially after-sales service?

SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.

What are your payment terms?

You may choose 30% prepaid and 70% paid before delivery.

What is the production time?

Delivery time: within 30 working days after receiving the deposit.
