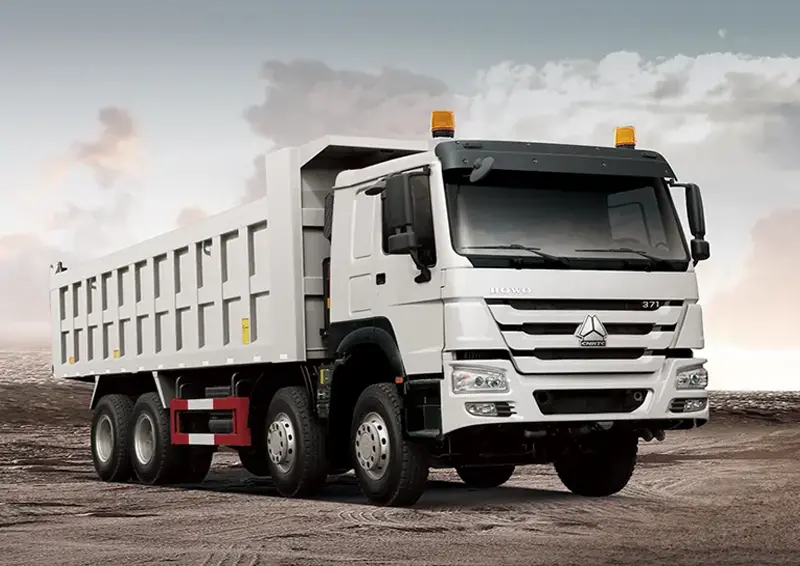

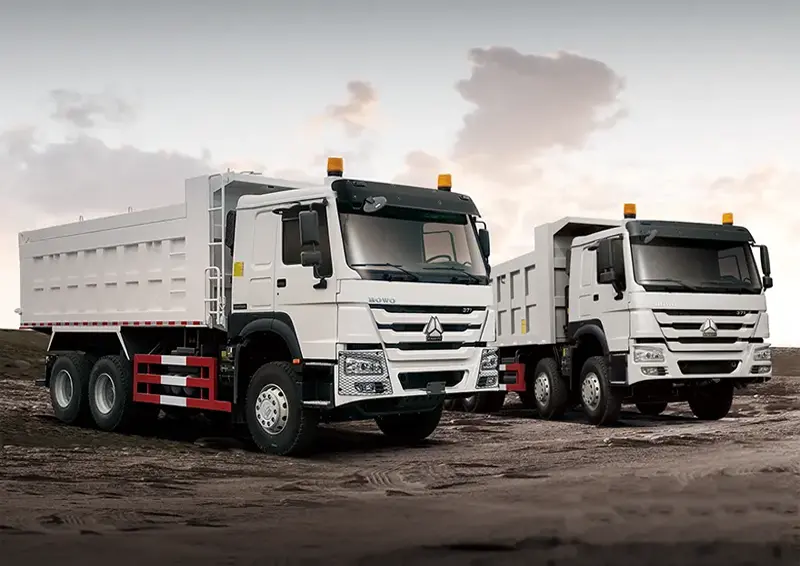

Howo 8x4 Dump Truck

Model:
ZZ3317V4267B1
Driving Type:
8x4 / 12 wheels / 4 axles
Transimission:
HW19710
Emission Standard:
371HP-430HP
Cargo body:
22-28CBM
Tires:
12.00R20,12.00R24,13R22.5
Request for Price
Overview

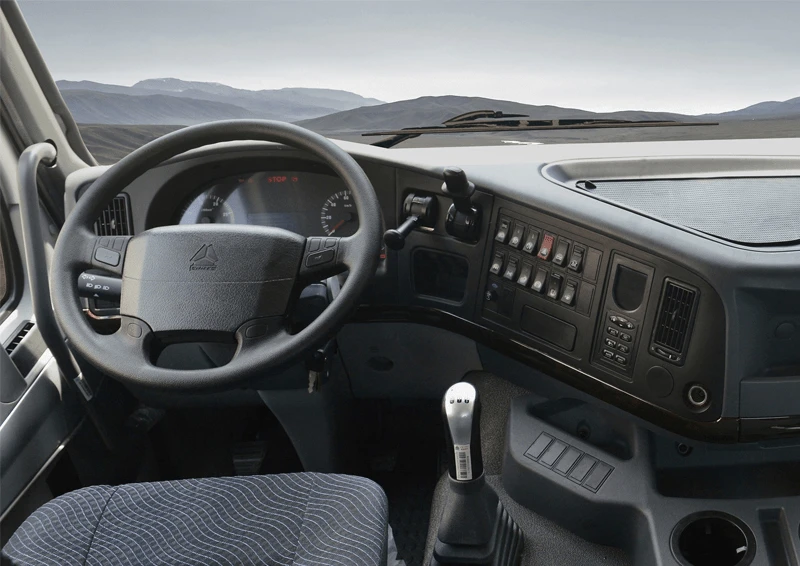

HOWO-7 Cabin
Cabin

The HOWO-7 cab uses an integrated steel frame structure, offering strong impact and compression resistance and proven safety through rigorous crash testing.
A three-layer air intake grille adds depth to the classic front design. Non-slip steps and 90° door opening make entry and exit easier for drivers.

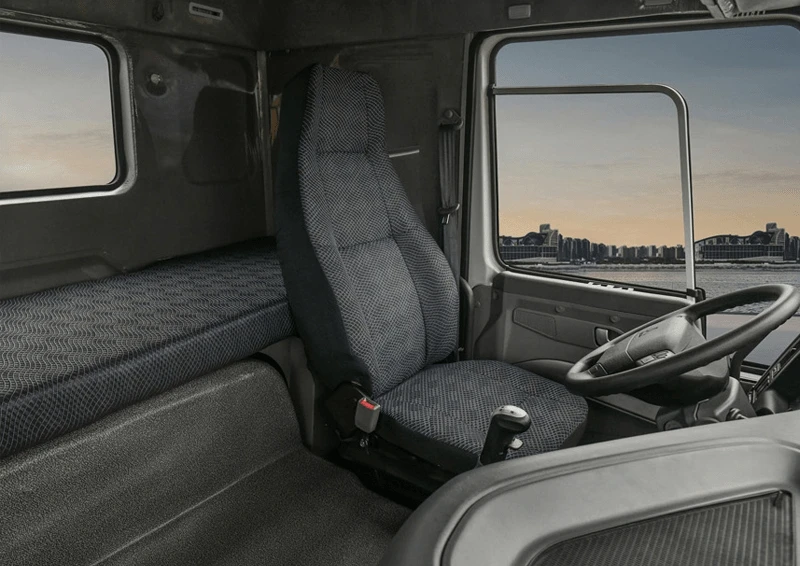

HOWO-7-Air-Suspension-Seat
Air-Suspension Seat

The air-cushion seat allows quick adjustment to the ideal driving position. Its integrated seat-belt design follows ergonomic principles to prevent discomfort during sudden braking.

HOWO-7 Four-Point-Air-Suspension
Four-Point Air Suspension

The four-point air suspension enhances stability, shock absorption, and ride comfort, and provides rearward cab displacement during collisions to improve occupant safety.

HOWO-7 Engine
Engine

Equipped with WD615/D10 and WP10/WP12 engine families offering high low-speed torque and strong power. Shared components reduce maintenance cost and simplify servicing.

Power range: 266–430 Ps.

Emission standards: Euro II–Euro V.

HOWO-7 Transmission
Transmission

Available with HW 10-speed or 12-speed transmissions using a main/auxiliary box design. The dual-countershaft main box and planetary auxiliary box provide high load capacity and strong reliability.

Combined forced and splash lubrication ensures better cooling and durability across road conditions.

Optional HW 9-speed helical-gear synchronizer transmission delivers lighter, smoother shifting.

HOWO-7 Chassis
Chassis

The HOWO-7 frame and chassis use high-strength steel with excellent torsional rigidity and durability, suitable for long-term heavy-duty transport operations.

Specifications
SINOTRUK HOWO 8X4 DUMP TRUCK
ODEL ZZ3317V3567B1 ZZ3317V3867B1 ZZ3317V4267B1 ZZ3317V4667B1
ZZ3317V356JB1 ZZ3317V356GB1 ZZ3317V356HB1 ZZ3315V3266E1
ENGINE Manufacturer: SINOTRUK /WEICHAI
WD615.47 WP12.400 WP12.430 Man engine,MC Series
371HP 400HP 430HP 430HP
TRANSIMISSION HW19710/HW19712/HW20716Manual/ Automatic transmission
FRONT AXLE VGD95
REAR AXLE MCX16ZG/MCP16ZG
CHASSIS Frame: U-profile parallel ladder frame with section of 300x80x8mm, all cold riveted cross members
Front suspension: 9semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 15 leaf semi-elliptic spring with width of 90mm and bogie springs, stabilizer
STEERING Germany BOSCH Power steering, hydraulic steering with power assistance
BRAKING SYSTEM service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
TIRES 12R22.5 295/80R22.5 315/80R22.5 12.00R20 12.00R24 13R22.5
CARGO BODY Length:6800mm/7300mm/7600mm/7800mm/8000mm
Width:2300mm/2400mm
Height:1500mm/1600mm/1700mm/1800mm/2000mm
CAB HW series V7 series H77L series T7H series TX series C7 series
Others Reverse buzzer, High metal bumperIntercooler protection
Engineering intakeoil-bath filter
FAQ
Are you a dealer or a factory?
We are the official SINOTRUK factory.
I want to ship the truck by container. Is it possible?
Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.
How is the product quality?
All trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to become your agent in my country. Is that acceptable?
Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.
How is your company's service, especially after-sales service?
SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.
What are your payment terms?
You may choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: within 30 working days after receiving the deposit.
