Howo 160HP 10Ton Fences Light Truck

Model:

ZZ1127G4715C1

Engine:

YC4E160-33

Maximum speed:

95 km/h

Overall Dimensions(LxWxH):

8195x2430x3650mm

Request for Price

Overview

Sinotruk Howo Fences Light Truck Features

As a flagship product in the Sinotruk HOWO series, the Sinotruk Howo Fences Light Truck, equipped with a 160-horsepower engine, is designed for short- and medium-haul logistics. Sinotruk Howo Fences Light Truck powerful powertrain , coupled with an 10-speed transmission, allows it to easily handle complex urban and rural road conditions, while achieving a 12% reduction in fuel consumption compared to similar models.

Sinotruk Howo Fences Light Truck

Loading innovation: The 4.2-meter compliant sidewall cargo box is made of high-strength steel. The Sinotruk Howo Fences Light Truck has a load capacity of 8-10 tons, and the unique anti-slip design ensures the secure retention of cargo.

Smart upgrade: All models are equipped with an onboard terminal as standard, allowing users to monitor the Sinotruk Howo Fences Light Truck’s fuel consumption, location, and fault codes in real time through the “Smart Sinotruk” app.

Specifications

MODEL	ZZ1127G4715C1
ENGINE	Manufacturer: YUCHAI
	Diesel:4-strote direct injection diesel engine
	Engine model: YC4E160-33, Euro II emission standard, water-cooled, four strokes, 4 cylinders in line with water cooling. Turbocharged and intercooling, directly injection
	Max output:160HP(118kw)
	Displacement:4.257L
CLUTCH	Φ300 diaphragm single-plate dry coil-spring clutch.
TRANSIMISSION	Model: DC6J65TC, 6forward & 1reverse ratio: 6.719,4.031,2.034, 1.443, 1, 0.74, R 6.122
FRONT AXLE	3.2T Forging I beam
REAR AXLE	8T Pressed welding axle housing
CHASSIS	High tensile steel, Section 232x70x7mm,width 865mm Front suspension: 9semi-elliptic leaf springs, with shock absorbers Rear suspension:12+9 semi-Elliptical leaf springs Oil tanker capacity：220L Iron
STEERING	Left hand driving
BRAKING SYSTEM	service brake: dual circuit compressed air brake Parking brake(emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
TIRES	9.00R20 Radial Tire with one spare tire.Radio+Mp3
CAB	2080 one and half row cabin, with A/C
ELECTRICAL SYSTEM	Operating voltage: 24V, negative grounded Starter: 6 kW Alternator: 28V, 55A batteries: 2 x 12V, 120 Ah
INSTRUMENT PANEL	Active check control with indicators, with this instrument the daily manual checks on the vehicles and combined indicators of compressed pressure, coolant temperature, engine oil pressure and battery charging
DIMENSION IN (MM)	Wheel base	3825+1350
	Front/ Rear wheel track	1798/1764
	Front/ Rear overhang	1240,2255
	Approach/ Departure angle(°)	27/19
	Dimension(Lx W x H)（unloaded）	8195x2430x3650
Mass	GVW(kg)	12490
	Curb weight	4155

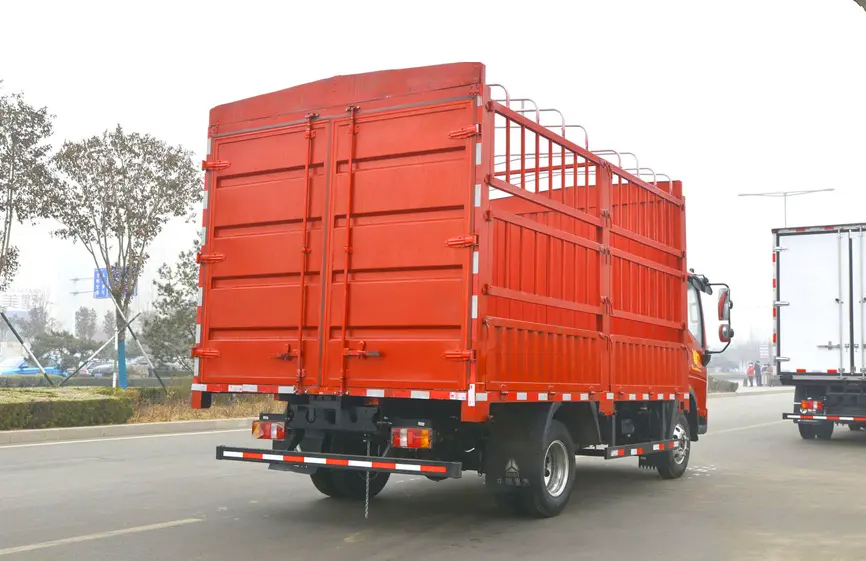

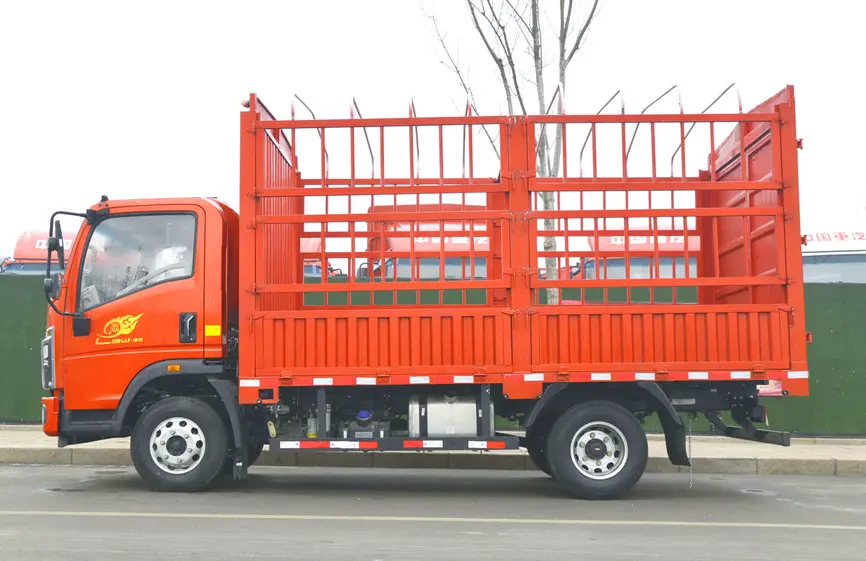

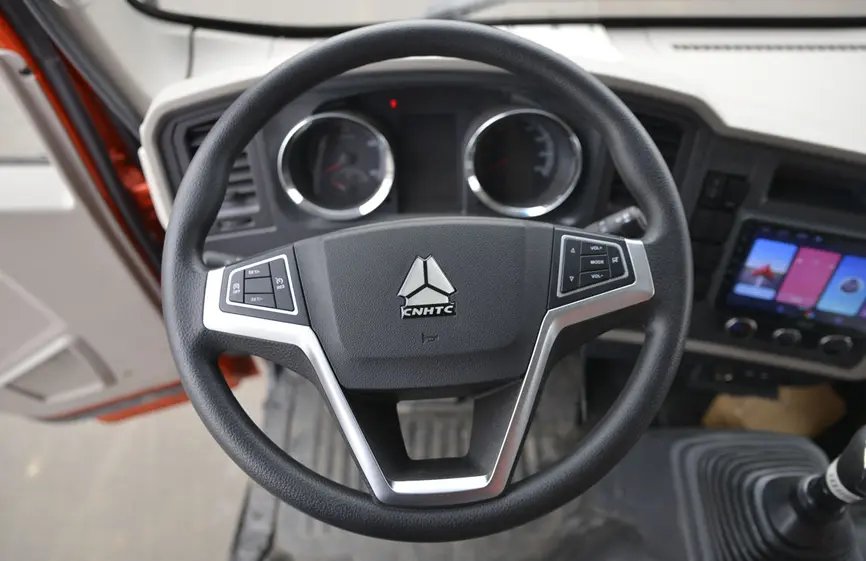

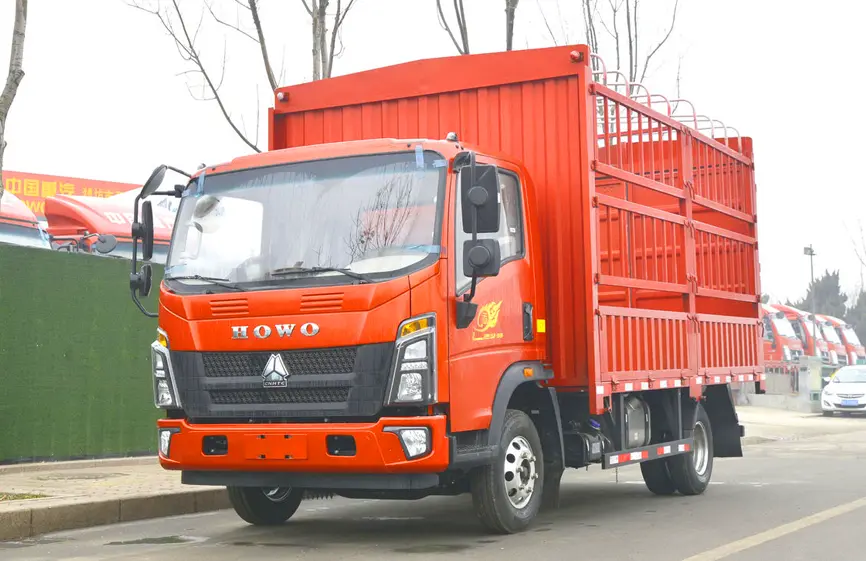

Gallery

It is currently the logistics peak season. Choosing the Sinotruk Howo Fences Light Truck, will be an ideal solution for scenarios such as urban distribution and building materials transportation.

FAQ

Are you a dealer or a factory?

We are the official SINOTRUK factory.

I want to ship the truck by container. Is it possible?

Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.

How is the product quality?

All trucks are original SINOTRUK products, and the quality is 100% guaranteed.

I want to become your agent in my country. Is that acceptable?

Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.

How is your company's service, especially after-sales service?

SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.

What are your payment terms?

You may choose 30% prepaid and 70% paid before delivery.

What is the production time?

Delivery time: within 30 working days after receiving the deposit.
