Howo NX 6x4 Dump Truck

Model:

ZZ3257V384JB1

Series:

Sinotruk Howo NX

Engine model:

WD615.47,371HP

Transmissio:

Sinotruk HW19712CL

Engine power:

371HP

Cargo body:

20CBM

Request for Price

Overview

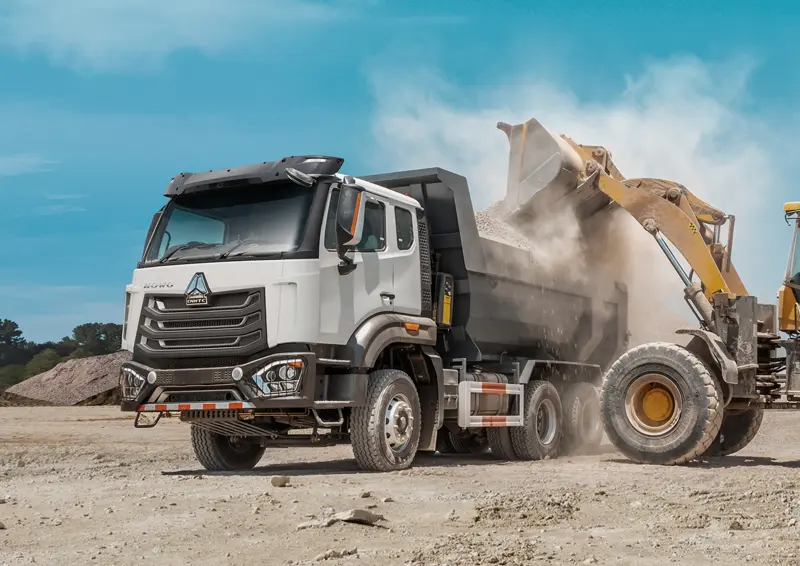

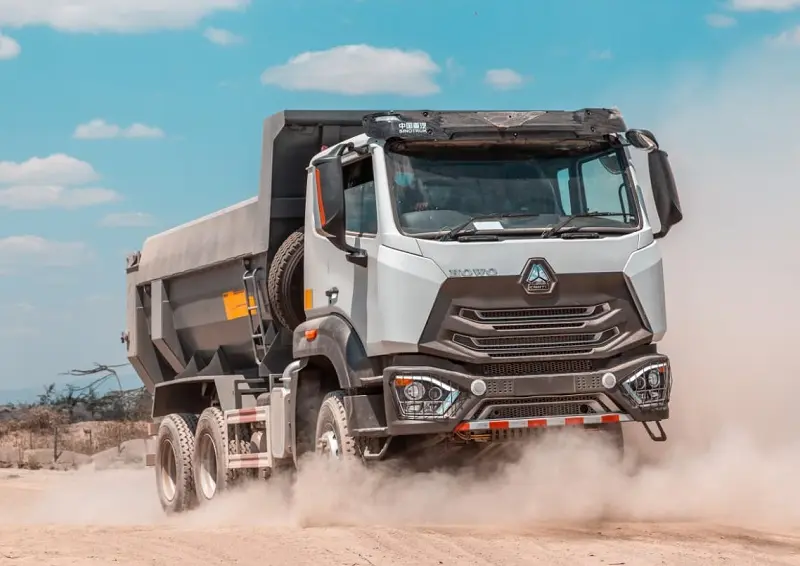

Sinotruk Howo NX 6x4 Dump Truck

The Sinotruk Howo NX 6×4 Dump Truck is constructed from high-strength steel, offering excellent torsional and compressive resistance, making it suitable for harsh road conditions. Its fast and stable hydraulic system not only improves efficiency but also ensures comfortable driving for extended periods. The Sinotruk Howo NX 6×4 Dump Truck is an ideal choice for heavy-duty transport.

Sinotruk Howo NX 6x4 Dump Truck

The Sinotruk Howo NX 6×4 Dump Truck is a powerful, heavy-duty truck equipped with a 380-horsepower engine, suitable for use in industries such as mining, construction, and infrastructure. With a 20-cubic-meter cargo box, the Sinotruk Howo NX 6×4 Dump Truck can carry 30 to 40 tons of cargo.

Specifications

SINOTRUK HOWO NX 6×4 Dump Truck

Model:ZZ3257V384JB1

Cab: H77L cabin with one sleeper and A/C

Engine:WD615.47,371hp, EURO 2 Emission standard

Transmission:HW19710+HW50 PTO Manual transmission（10F&2R）

Front axle: VGD95,9.5 tons drum fronr axle

Drive axle: MCP16ZG,16tons double rear axle, speed ratio:6.037

Steering:Left hand driving or Right hand driving

Oil tanker:300L or 400L

Tires: 315/80R22.5,18PR, 12.00R20,13R22.5，12.00R24

CArgo body:5600*2300*1500mm,bottom 8mm, side 6mm,middle lifting system

Dimension(L×W ×H)（mm）		8545x2560x3390mm
Cargo body		5600x2300x1500,bottom 8mm, side 6mm,middle lifting system
Engine	Model	WD615.47
	Fuel type	Diesel
	Power(kw)	273(371HP)
	Emission	EURO 2
Fuel tanker capacity（L）		300L/400L
Transmission	Model	HW19710+HW50 PTO Manual transmission
Brake system	Service brake	Dual circuit compressed air brake
Brake system	Parking brake	spring energy, compressed air operating on rear wheels
Steering system		LHD/RHD
Front axle	VGD95,9500Kgs Drum
Rear axle	MCP16ZG，2x16000Kgs Drum
Color	Options

Gallery

Sinotruk Howo NX 6×4 Dump Truck– bring you more comfort, reliability and income than you expect.

FAQ

Are you a dealer or a factory?

We are the official SINOTRUK factory.

I want to ship the truck by container. Is it possible?

Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.

How is the product quality?

All trucks are original SINOTRUK products, and the quality is 100% guaranteed.

I want to become your agent in my country. Is that acceptable?

Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.

How is your company's service, especially after-sales service?

SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.

What are your payment terms?

You may choose 30% prepaid and 70% paid before delivery.

What is the production time?

Delivery time: within 30 working days after receiving the deposit.
