Sinotruk Howo NX 6x4 Tipper Truck

Model:
ZZ3257V384JB1
Series:
Sinotruk Howo NX
Engine model:
WP10.380E22
Transmission:
HW19710(10 forwards & 2 reverses)
Color:
White, red, green, golden
Up-body configuration :
18-28CBM
Buy The Truck
Overview

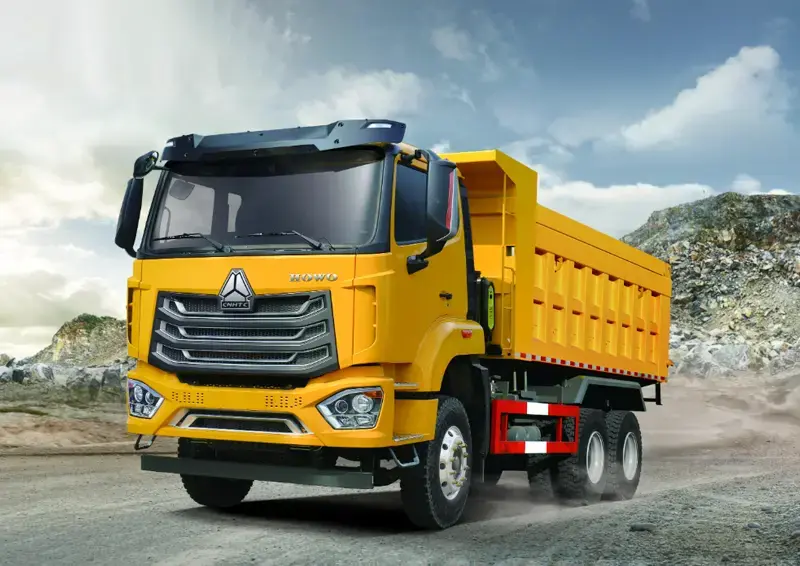

Sinotruk-Howo-NX-6×4-Dump-Truck-5
SINOTRUK HOWO NX 6X4 TIPPER TRUCK

Chassis: The truck is built on a sturdy 6×4 chassis, providing excellent stability and traction for off-road and on-road operations. The six-wheel drive configuration enhances load-carrying capacity and maneuverability, making it suitable for challenging terrains and heavy loads.

Cab: The cab offers a comfortable and safe driving environment with ergonomic controls, adjustable seats, and advanced safety features such as airbags and ABS brakes. The spacious interior provides ample legroom and storage space for tools and equipment.

Engine: The Sinotruk Howo NX 6×4 tipper truck is powered by a powerful diesel engine that delivers impressive torque and horsepower. The engine is designed for fuel efficiency and low emissions, ensuring compliance with environmental regulations and reducing operating costs.

Sinotruk-Howo-NX-6×4-Dump-Truck
SINOTRUK HOWO NX 6X4 TIPPER TRUCK

Transmission: The truck is equipped with a smooth-shifting manual or automatic transmission, allowing the driver to easily manage gear changes and maintain optimal engine performance.

Tipping System: The tipper body is made from high-strength steel, ensuring durability and resistance to wear and tear. The hydraulic tipping mechanism allows for quick and efficient unloading of materials, reducing labor requirements and increasing productivity.

Suspension: The truck features a heavy-duty suspension system that absorbs shocks and vibrations, providing a smooth ride for the driver and passengers even when traveling over rough terrain.

Specifications
SINOTRUK HOWO NX 6X4 TIPPER TRUCK
Model ZZ3257V384JB1
Drive Type 6×4
Engine D12.38 , 380 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin N76L(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle 2XHC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with
air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8550×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12100(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.
