Howo Nx 8x4 Dump Truck

Model:
ZZ3317V386JB1
Series:
Sinotruk Howo NX
Engine model:
WP10.380E22
Transmission:
Sinotruk HW19712CL
Engine power:
371HP-430HP
Cargo body:
18-28CBM
Request for Price
Overview

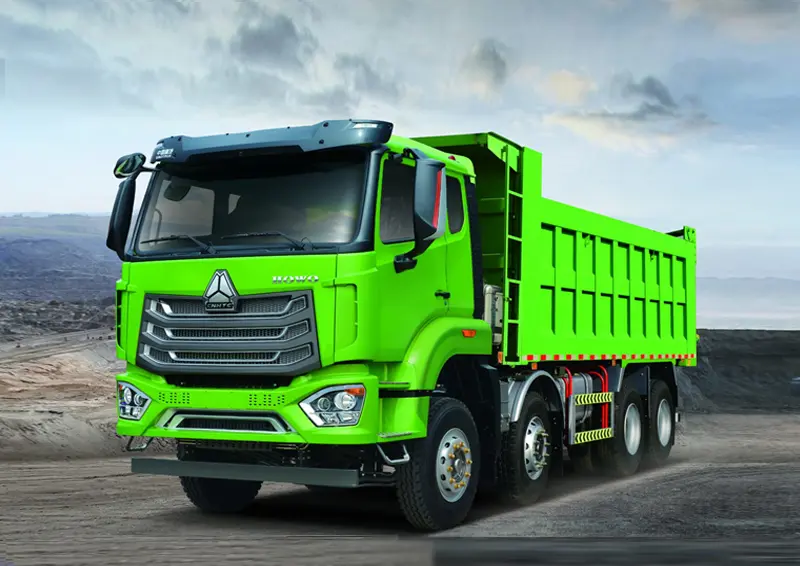

Sinotruk Howo Nx 8×4 Dump Truck (2)
SINOTRUK HOWO NX 8X4 DUMP TRUCK

Powerful Engine: Equipped with a high-performance engine, the truck offers excellent power and torque, ensuring smooth operation even under heavy loads.

Advanced Transmission: The truck comes with an advanced transmission system that provides seamless gear shifting, enhancing overall efficiency and driver comfort.

Robust Chassis: The sturdy chassis is engineered to withstand the rigors of heavy-duty operations, ensuring long-lasting performance and safety.

Enhanced Braking System: The truck is equipped with a reliable braking system, which includes air brakes and ABS (Anti-lock Braking System) for improved stopping power and stability.

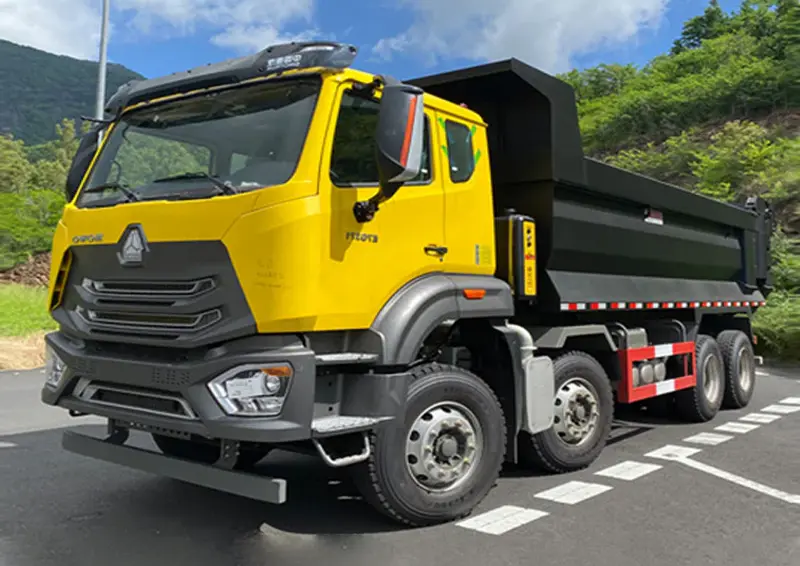

Sinotruk Howo Nx 8×4 Dump Truck (4)
SINOTRUK HOWO NX 8X4 DUMP TRUCK

Comfortable Cabin: The spacious and comfortable cabin provides a pleasant working environment for the driver, featuring ergonomic seating, climate control, and advanced communication systems.

Efficient Hydraulic System: The hydraulic system ensures smooth and precise operation of the dump body, allowing for quick and easy loading and unloading of materials.

Customizable Options: The truck can be customized with a variety of options and configurations to meet specific customer requirements and industry standards.

Specifications

HOWO NX 8×4 Dump Truck

Model:ZZ3317V386JB1

Cab: H77L cabin with one sleeper and A/C,main airbag seat

Engine:WD615.47,371hp, EURO 2 Emission standard

Transmission:HW19710+HW50 PTO Manual transmission(10F&2R)

Front axle: VGD95,9.5 tons drum fronr axle

Drive axle: MCX16ZG,16tons double rear axle, speed ratio:6.037

Steering:Left hand driving

Oil tanker:400L

Tires: 12.00R20,18PR, with one spare tire

Others:without ABS,high steel bumper, oil bath filter,Front and rear stabilizing bars

CArgo body:7600*2300*1500mm,bottom 8mm, side 6mm,Front lifting system

Dimension(L×W ×H)(mm)

10750x2560x3390mm

Cargo body

7600*2300*1500,bottom 8mm, side walls 8mm,middle lifting system

Engine

Model

WD615.47

Fuel type

Diesel

Power(kw)

273(371HP)

Emission

EURO II

Fuel tanker capacity(L)

400

Transmission

Model

HW19710+HW50 PTO Manual transmission

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

LHD/RHD

Front axle

Steering with double T-cross section beam

Rear axle

Cast axle housing, central reduction with planetary wheel reduction (hub reduction) and differential locks between axles and wheels

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Color

Factory standard (White, red, gray) can choose for free,
Other special colors require additional fee.

FAQ
Are you a dealer or a factory?
We are the official SINOTRUK factory.
I want to ship the truck by container. Is it possible?
Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.
How is the product quality?
All trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to become your agent in my country. Is that acceptable?
Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.
How is your company's service, especially after-sales service?
SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.
What are your payment terms?
You may choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: within 30 working days after receiving the deposit.
