Sinotruk Sitrak C7H 6x4 440 Dump Truck

Model:
ZZ3256 PARAMETER
Series:
Sitrak C7H
Engine model:
MC11.40-50
Gross weight:
41000kg
Engine variant power:
440HP
Transmission:
Automated
Buy The Truck
Overview
Sinotruk Sitrak C7H 6×4 440 Dump Truck
Sinotruk Sitrak C7H 6x4 440 Dump Truck

In the heavy-duty construction machinery sector, the Sinotruk Sitrak C7H 6×4 440 Dump Truck has become a star product for mining transportation thanks to its exceptional performance. This 440-horsepower, six-wheel-drive dump truck is equipped with a German-engineered MC11 series engine, delivering a maximum torque of 2,100 Nm. Combined with the HW25712XSTL transmission, the Sinotruk Sitrak C7H 6×4 440 Dump Truck maintains stable output even on a 30% slope.

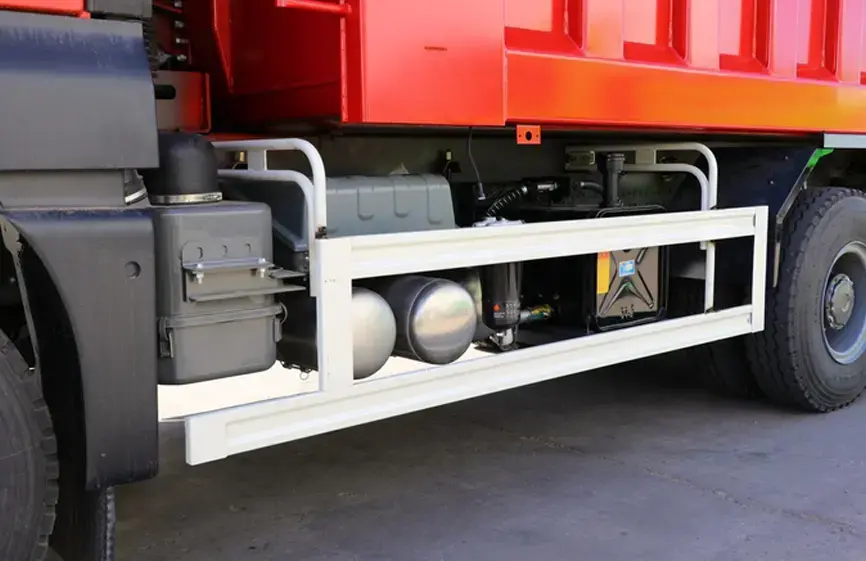

Sinotruk Sitrak C7H 6×4 440 Dump Truck-6
Sinotruk Sitrak C7H 6x4 440 Dump Truck

The Sinotruk Sitrak C7H 6×4 440 Dump Truck’s key advantages are reflected in three aspects: First, the 8.5-ton front axle and 16-ton rear axle form the Sinotruk Sitrak C7H 6×4 440 Dump Truck’s reinforced chassis system, which, combined with the three-layer beam structure, can carry a 60-ton payload; second, the intelligent oil-bath air filter system ensures that the Sinotruk Sitrak C7H 6×4 440 Dump Truck’s engine life in dusty environments is extended by 30%; finally, the Sinotruk Sitrak C7H 6×4 440 Dump Truck’s ergonomic four-point suspension cab reduces driver fatigue by 40%, and the equipped intelligent weighing system can monitor load status in real time.

Specifications
ZZ3256 PARAMETER
Product Name Sinotruk Sitrak C7H 6×4 440 Dump Truck Brand Sinotruk Sitrak
Origin China Model ZZ3256
Year 2025 Type Dump Truck
Total Weight 25000(kg) Curb Weight 12500(kg)
Seats 2 Max speed 88(km/h)
Type of Fuel Diesel Length 8537mm
Weight 2550mm Height 3460mm
Overall Dimensions(L*W*H) 8537*2550*3460mm SITRAK C7h Dump Truck SITRAK C7h Dump Truck
ENGINE PARAMETER
Engine Model

MC11.40-50

Engine Power 440hp
Displacement 10518(ml) Emission Standard EURO 5
CHASSIS PARAMETERS
Number of Spring Pieces

10/12

Number of Tire 10
Tire Type

295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,12.00R20 16PR

Approach/Depature Angle 19/25(°)
F/R Overhang 1492/1870mm) Front Track 2041/2041(mm)
Rear Track 1830/1830(mm) Number of Axis 3
Axial load 7000/18000 Wheelbase 3825+1350(mm)
