Sinotruk Sitrak G7 540 8x4 Dump Truck

Model:
ZZ5316ZLJN286MF1
Series:
Sitrak G7
Engine model:
Sinotruk MC11.40-61
Total mass:
31 tons
Engine variant power:
540HP
Transmission:
Automated
Buy The Truck
Overview

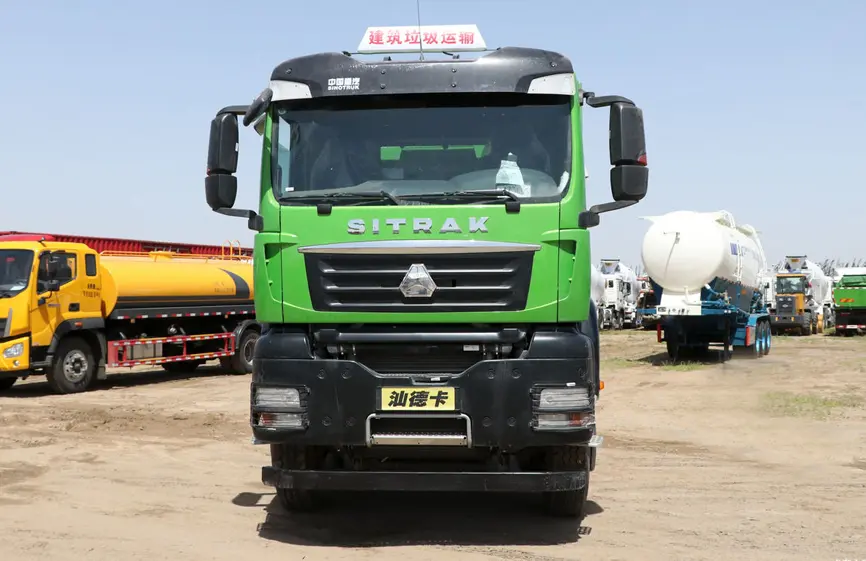

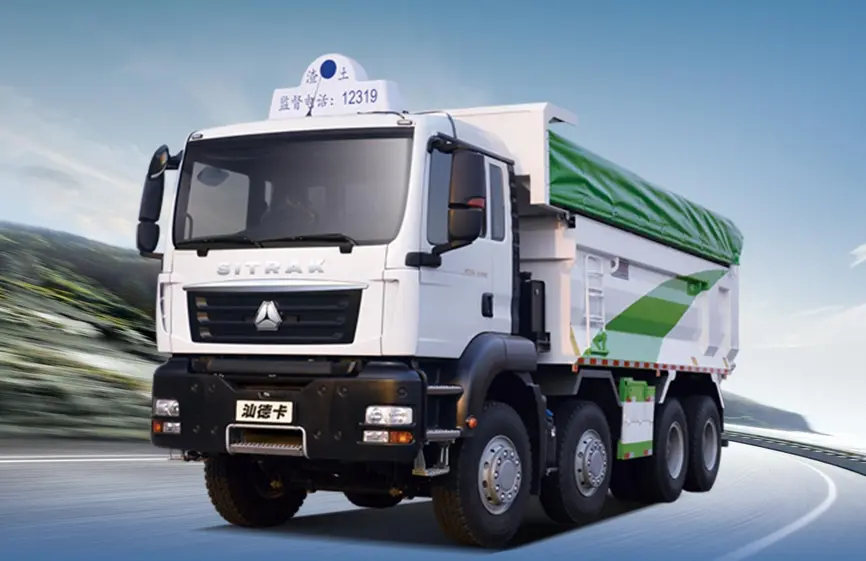

Sinotruk Sitrak G7 540 8×4 Dump Truck-1
Sinotruk Sitrak G7 540 8x4 Dump Truck: Mine transportation tool

As the flagship product of the Sinotruk HOWO series, the Sinotruk Sitrak G7 540 8×4 Dump Truck, leveraging German MAN technology, excels in the construction and transportation sector. Equipped with a 540-horsepower MC13 engine and an HW25712XSTL transmission, the Sinotruk Sitrak G7 540 8×4 Dump Truck delivers 2500 Nm of peak torque, easily handling 60-ton loads.

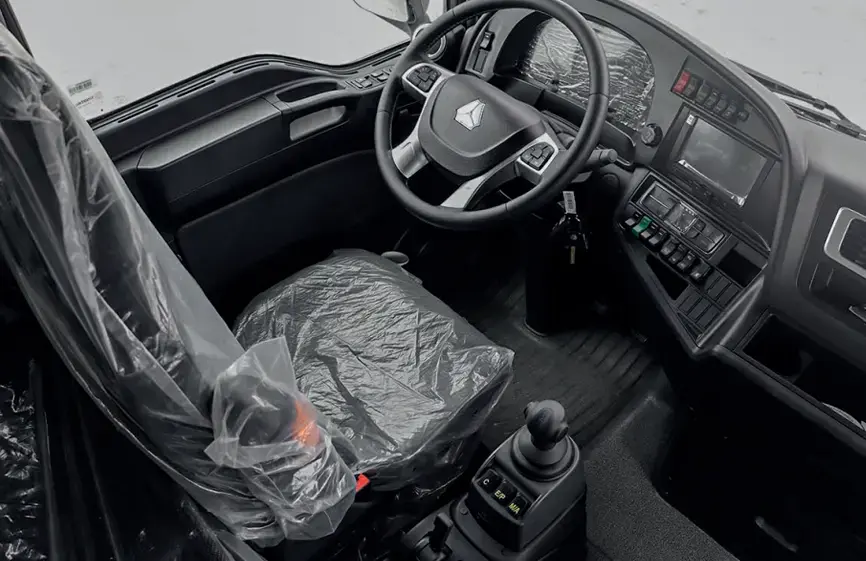

Sitrak Truck-2
Sinotruk Sitrak G7 540 8x4 Dump Truck Core Advantages

Efficient Powertrain: An intelligent shifting system developed specifically for the Sinotruk Sitrak G7 540 8×4 Dump Truck delivers 8% fuel savings compared to similar models.

Reinforced Chassis: Sinotruk Sitrak G7 540 8×4 Dump Truck, an 8×4 drive double-beam design, coupled with an engineering-grade double-reduced axle, perfectly adapts to complex mining conditions.

Intelligent Control: Standard LCD instrument panel and Beidou-3 terminal provide real-time vehicle status monitoring.

Specifications
Model series Sinotruk SITRAK G7 540 8×4 Dump Truck
Ver. Diesel engine
Condition Second hand
Steering gear SIONTRUK HW25712XS / SIONTRUK HW19712C
Emission standards EUROⅤ
Driving Type 8*4
Engine model and horsepower MC11.46-61 400HP
Cylinder Arrangement In-line
Max output power 297kW
Max Power 400 HP
Max Torque 1900N·m
Rated Speed 1900N·m
rear axle SIONTRUK AC16
Wheel base (mm) 1800+3200+1400mm
Front wheel track (mm) 2022/2022mm
Rear wheel track (mm) 1830/1830mm
Transmission 12 forward gears + 2 reverse gears
Frame size
Oil tank (L)
Rear axle ratio
NO. Of Spring 11/11/12
Tires 12.00R20 18PR
Capacity (load) 31T
Cab suspension
Cargo Box Size(L*W*H) 5800*2350*1500
Size 9022*2550*3500
Engine Type Water-cooled, four-stroke, supercharged and intercooled, high-pressure ecommon rail
