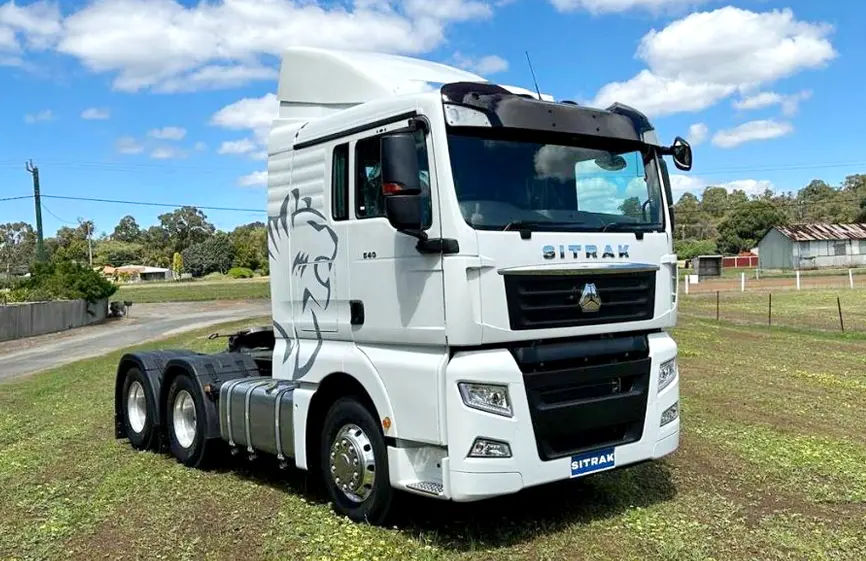

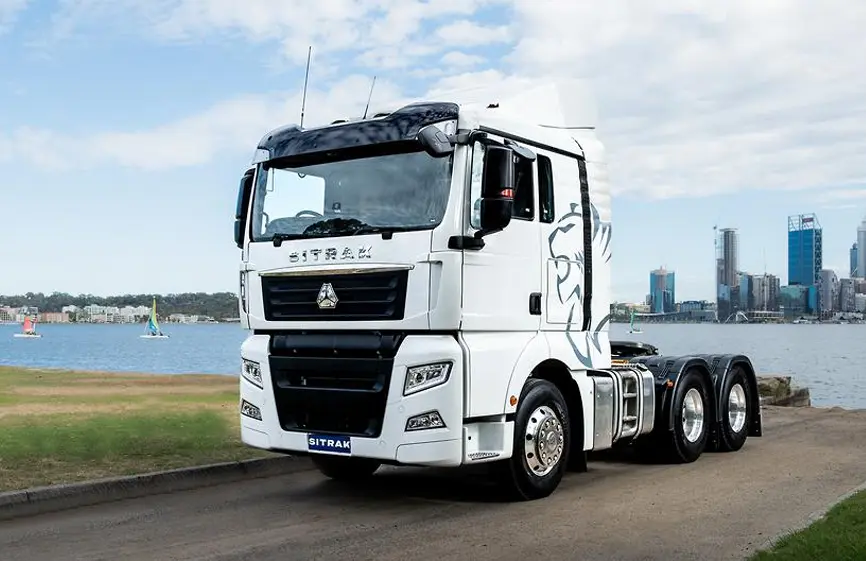

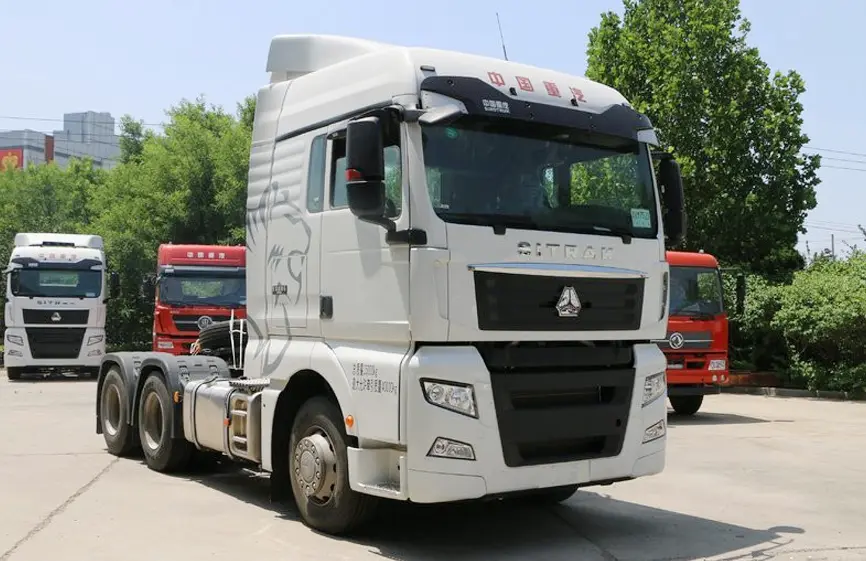

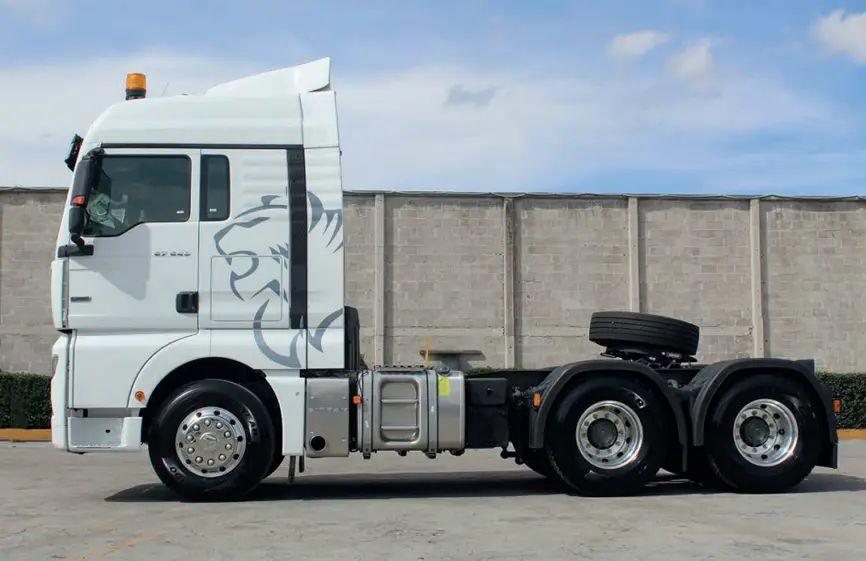

Sitrak C7H 6x4 430 Tractor Truck

Model:
ZZ4256V364HE
Series:
Sitrak C7H
Engine model:
MC13.48-50, MAN license
Gross weight:
41000kg
Engine variant power:
430HP
Transmission:
Automated
Buy The Truck
Overview
Sitrak C7H 6x4 430 Tractor Truck Features
  • Maneuverability and stability on rough terrain:With four-wheel drive, the Sitrak C7H 6×4 430 Tractor Truck easily negotiates inclines, slopes and uneven surfaces, making it ideal for construction and quarrying work.
  • Efficient handling of heavy loads: The 6×4 axle configuration provides the truck with sufficient power and traction to transport heavy and oversized loads. This allows the Sitrak to cope with tasks that require high loadtext capacities.
Sitrak C7H 6x4 430 Tractor Truck
  • Excellent cross-country ability: The 6×4 wheel arrangement provides a high level of traction, which is especially important when driving on slippery, loose or uneven surfaces. Regardless of whether it is a dirt road, mud or snow, the truck maintains stability and control.
  • Uniform load distribution: The drive axles effectively distribute the weight of the Sitrak C7H 6×4 430 Tractor Truck and the cargo being transported, reducing the load on individual chassis components. This increases the service life of components and assemblies, even when operating in difficult conditions.
Specifications

• Model: Sitrak C7H 6×4 430 Tractor Truck
• Engine: MT 13.48-50 with MAN Technology
• Fuel injection system: CFVE – Controls / Continuous Flow
• Cylinders: 6
• Maximum power: 480 HP @ 1,900 rpm
• Fuel: CNG
• Torque: 1,696 lbs-ft @ 1,000 – 1,400 RPM
• Emissions: EURO V
• Transmission: Manual / ATM, 12 speeds forward + 2 reverse
• Brakes: Front and rear disc brakes (6 x Discs)
ABS + ASR + EBL, Dual circuit air brakes
Double spring chambers
EVB (Engine Brake and Exhaust Brake reciprocating butterfly type +
Hydraulic retarder)
• Front axle: 7,000kgs (15,432 lbs.)
• Rear axle: 26,000kgs (57,320 lbs.)
• Suspension: Front: Semi-elliptical springs, stabilizer bar with
hydraulic shock absorber.
Rear: Pneumatic with 8 independent airbags
• Wheels: Aluminum

LINE EQUIPMENT:
• Air conditioning with digital display and control
• Centralized remote locking
• Driver and co-pilot seat with air suspension, shock absorption and
adjustable lumbar support
• 6.2-inch TFT LCD screen with a resolution of 800 x 480 with
volume adjustment keys on the steering wheel. Equipped with AM-FM radio, USB and SD card inputs
• 34-inch cabin with bunk
• Steering wheel with position adjustment
