Sitrak C7H 6x4 540hp Tractor Truck

Model:

ZZ4256V364HE

Series:

Sitrak C7H

Engine model:

MC13.48-50, MAN license

Gross weight:

41000kg

Engine variant power:

430HP

Transmission:

Automated

Buy The Truck

Overview

Sitrak C7H 6×4 540 Tractor Truck-1

Sitrak C7H 6x4 540hp Tractor Truck Features: Powerful Performance, Heavy-Duty Pioneer

As a high-end model under Sinotruk Group, the Sinotruk Sitrak C7H 6×4 540hp Tractor Truck is equipped with a MAN MC13 engine, delivering a powerful 540 horsepower output paired with a 16-speed AMT transmission, effortlessly handling complex terrain such as mountainous and high-altitude regions. The Sinotruk Sitrak C7H 6×4 540hp Tractor Truck’s modular design achieves a B10 lifespan exceeding 1.5 million kilometers, making it a reliable partner for long-haul freight transportation.

Sitrak C7H 6×4 540 Tractor Truck-2

Sitrak C7H 6x4 540hp Tractor Truck: Intelligent Driving Control, Safety Always by Your Side

The Sitrak C7H 6×4 540hp Tractor Truck comes standard with AEBS automatic emergency braking and LDWS lane departure warning. The cab features patented four-point suspension technology, combined with air-cushioned seats, effectively reducing fatigue during long-distance driving. The Sitrak C7H 6×4 540hp Tractor Truck is equipped with an intelligent fuel-saving system, achieving a fuel consumption reduction of 8%-12% per 100 kilometers compared to similar products.

Specifications

Equipment

Built in high strength steel, 70º tilting with electric lift, 3
speed windshield wipers, dashboard with on-board computer, laminated windshield, driver’s seat with
air suspension, adjustable windshield protector outside the cabin, AM/FM radio with MP5, height and depth adjustable steering wheel, air horn, air conditioning with digital climate control, electric windows, 4 electric mirrors, central door locking, auxiliary reading lighting for beds and driver’s seat, with VDO MTCO1324 tachograph.

Engine

Brand and Model:  MC13.54-50 Common Rail EURO V
Net Power KW / HP @ rpm:  400Kw / 540 HP at 1900 rpm
Displacement:  12,419 cc
Stroke (mm):  166
Cylinder diameter (mm):  126
Torque (Nm/rpm):  2,500 Nm at 1,050 -1,350 Rpm
Fuel:  Diesel
Fuel Consumption (g/Kwh):  ≤188

Dimensions

Support bases:  Ladder type – Parallel “U” profile with MAN section 270x85x8 mm
Sizes (Length x Width x Height) (mm):  6,895 x 2,496 x 3,980 Dimensions (mm)
Wheelbase:  3,200 + 1,400 mm
Rear Suspension:  Pneumatic 8 bladders CONTITECH + ECAS WABCO
Angle of entry : 19º
Angle of exit : 32º

Weight and capacity

Vehicle Type :  Truck Tractor
Engine Power:  540 HP
Traction:  6×2 / 6×4
Weight (Kg):  8300 / 8900
Fifth wheel / pin measurement:  JOST / 50mm

Gallery

Tailored for time-sensitive industries such as cold chain logistics and express delivery, the Sitrak C7H 6×4 540hp Tractor Truck features a dual fuel tank configuration of 600L + 400L, offering a range exceeding 3,000 kilometers. Its lightweight design keeps the vehicle’s curb weight at just 8.5 tons, paired with a 3.083 low-gear ratio rear axle, achieving a perfect balance between load-carrying capacity and fuel efficiency.

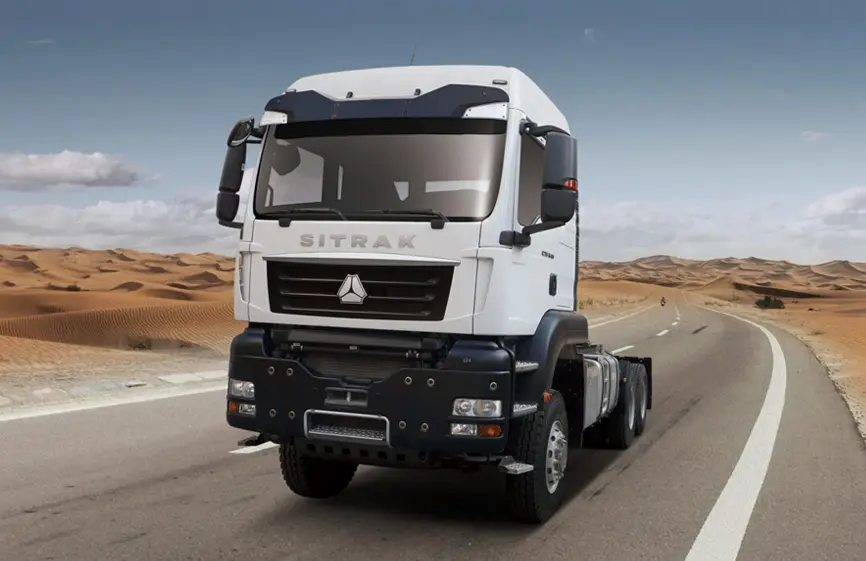

Sitrak C7H 6×4 540 Tractor Truck-5

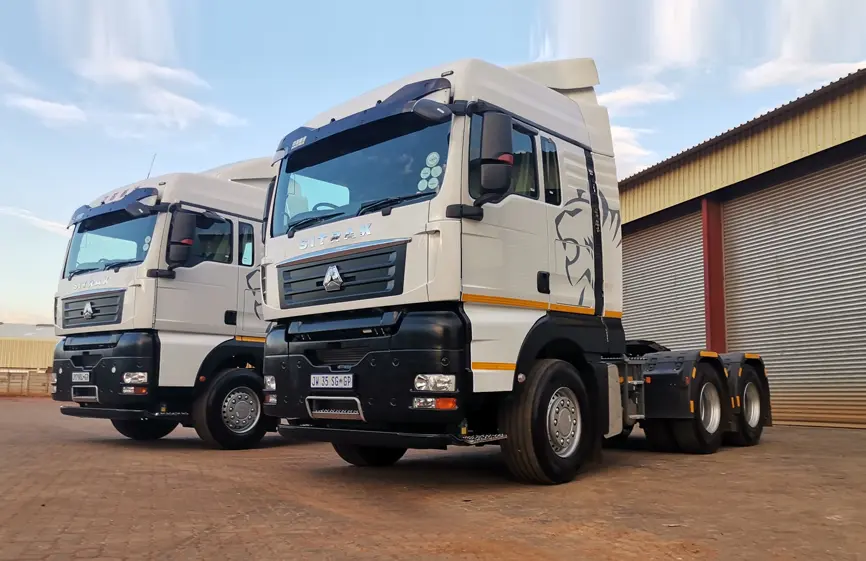

Sitrak C7H 6×4 540 Tractor Truck-4

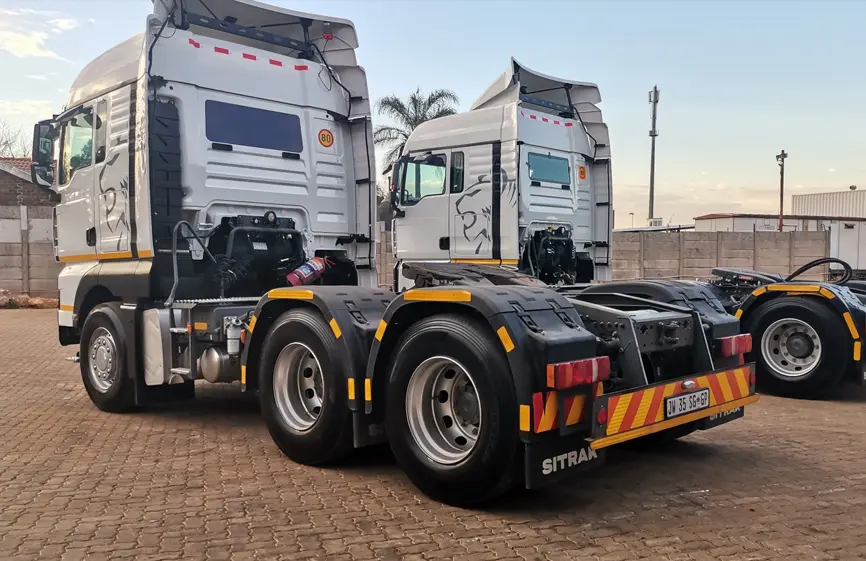

Sitrak C7H 6×4 540 Tractor Truck-2

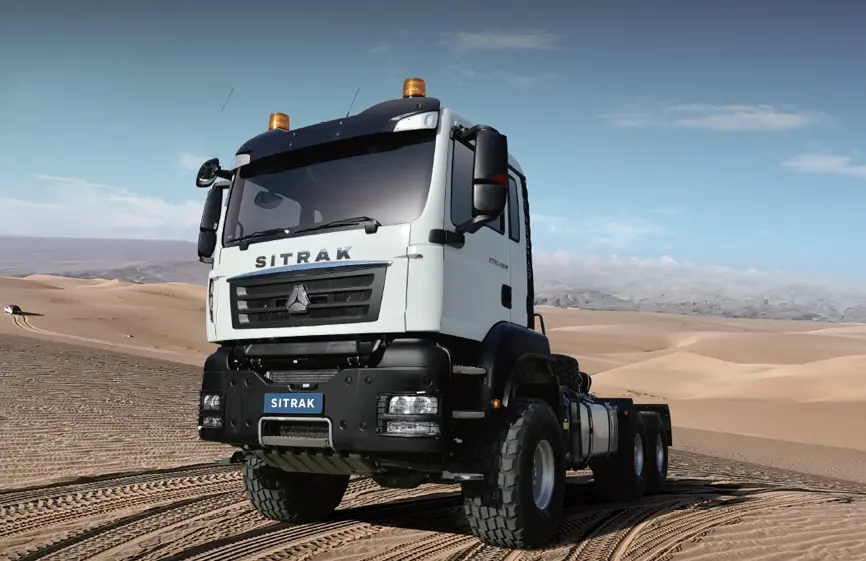

Sitrak C7H 6×4 540 Tractor Truck-1

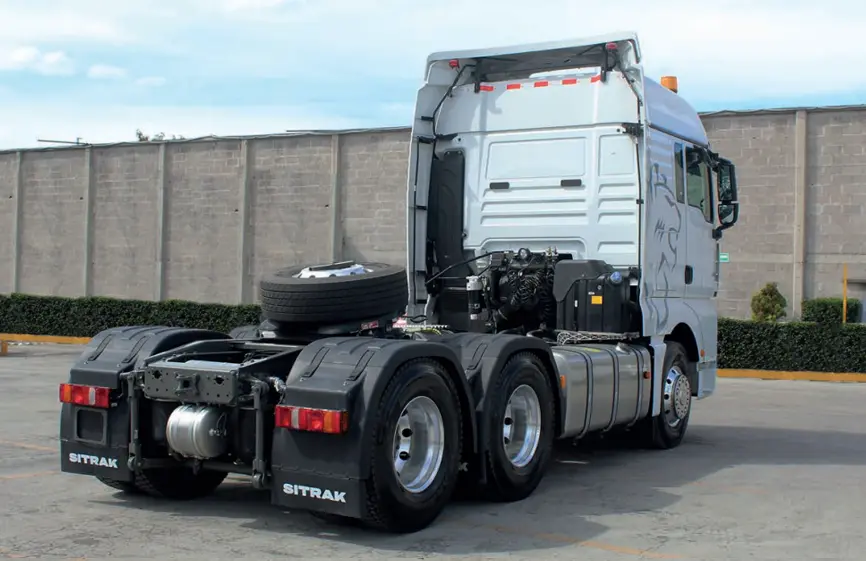

Sitrak C7H 6×4 430 Tractor Truck-5
