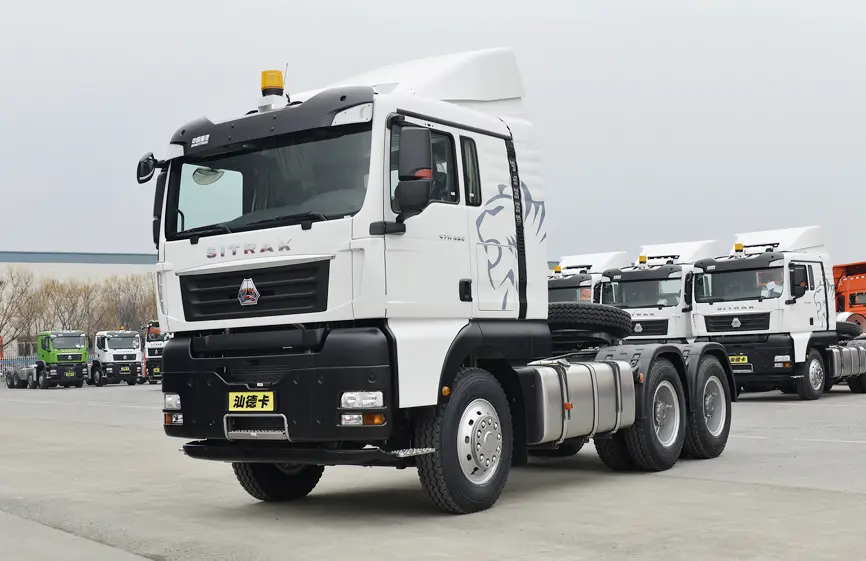

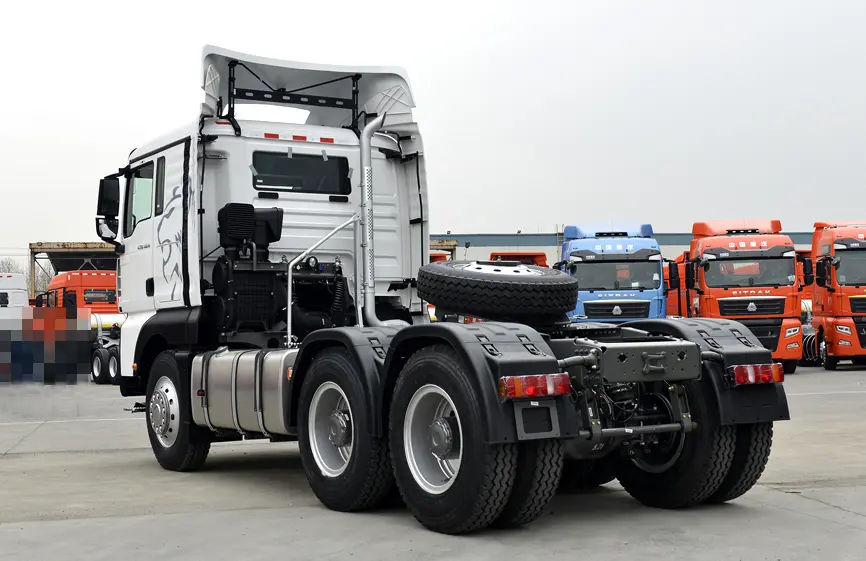

Sitrak G7 6x4 540 Tractor Truck

Model:
ZZ4256V324HE1W
Series:
Sitrak G7
Engine model:
WP14T630E62 engine
Total traction mass:
40 tons
Engine variant power:
540HP
Transmission:
Automated
Buy The Truck
Overview

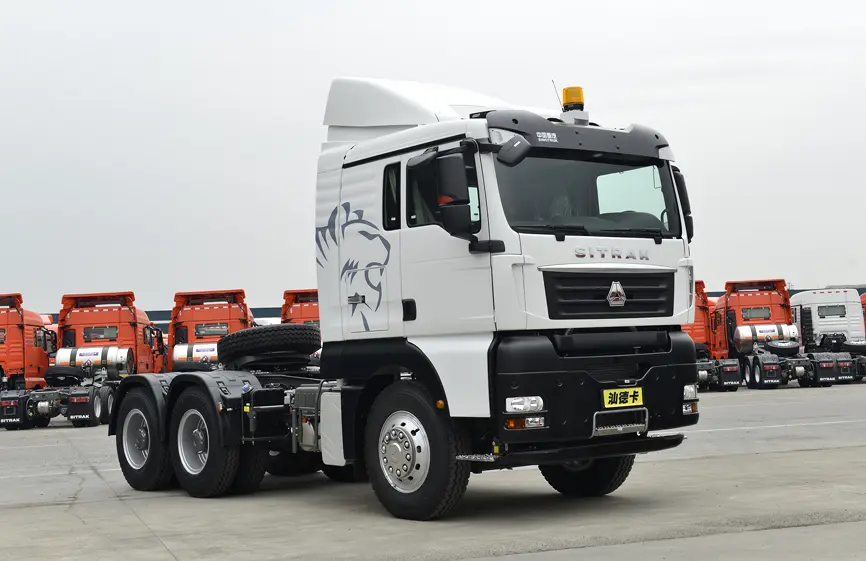

Sitrak G7 6×4 540 Tractor Truck-2
Sitrak G7 6x4 540 Tractor Truck: The Ultimate Solution for Efficient Logistics

In the heavy-duty trucking sector, the Sitrak G7 6×4 540 Tractor Truck, powered by a 540 HPM engine and paired with a 12-speed AMT transmission, achieves 8% lower fuel consumption per 100 kilometers than competing models. Its 6×4 drivetrain and lightweight, high-strength steel frame perfectly balance tough road conditions with load capacity, improving single-trip transport efficiency by up to 15%.

Sitrak G7 6x4 540 Tractor Truck: Humanized Design Highlights

The cab features a four-point suspension design and is equipped with a Grammer airbag seat and a 1-meter-wide sleeper berth. The Sitrak G7 6×4 540 Tractor Truck is particularly noteworthy for its intelligent cruise control system, which uses millimeter-wave radar to automatically follow the vehicle, significantly reducing fatigue during long-distance driving. The wraparound instrument panel is equipped with a 10-inch central control screen, integrated with Beidou-3 navigation and a fleet management system.

Sitrak G7 6x4 540 Tractor Truck: Reliability Guarantee System

The Sitrak G7 6×4 540 Tractor Truck features a 500,000-kilometer B10 lifespan design, and key components have undergone 2,000 hours of bench testing. Our after-sales network, spanning 2,800 service stations nationwide, provides each Sitrak G7 6×4 540 Tractor Truck with a three-year, unlimited mileage warranty. Actual operating data shows a mean mileage between failures of 120,000 kilometers, 40% higher than the industry standard.

Specifications
Engine model WP14T630E62 engine
Net power (KW)/speed (r/min) 463/1900
Maximum torque (Nm)/speed (r/min) 2750/950-1400
gearbox HW27716XAL gearbox (with hydraulic retarder/integrated)
Clutch (mm) φ430
Rear axle model MCY12BGS self-adjusting double rear axle (drum)
Rear axle speed ratio 2.71
Fuel tank (L) 550L+550L dual fuel tanks
Frame section (mm) 270
Suspension (front spring and rear spring) Front and rear leaf springs (2/3)
tire 12R22.5



Engine model WP14T630E62 engine
Dimensions (mm) 7170×2496×3980 mm
Wheelbase (mm) 3400
Front overhang and rear overhang (mm) 1492/978
Factory-specified maximum total mass (kg) 9300
Rated number of passengers (persons) 3
