Howo Tx 6x4 Dump Truck

Model:

ZZ3257V384GB1

Driving Type:

6x4 / 10 Wheels / 3 Axles

Engine model:

WD615.47,371HP

Transmission:

Sinotruk HW19710

Engine power:

371HP

Cargo body:

18-20CBM

Request for Price

Overview

WIDER APPLICATION

Thanks to the rigorous theory verification and complex road tests, the powertrain is well chosen, thus makes full use of it.

HIGHER EFFICIENCY

Reasonable matching and advanced technology support raise the overall operation.

LONGER MAINTENANCE INTERVAL

Longer oil change interval guarantee higher attendance. Engine, transmission and axle oil change interval is as long as 100,000 kilometers.

Specifications

HOWO TX 6X4 DUMP TRUCK
Model	ZZ3257V384GB1
Driving Form	6X4
Cabin	TX-F cabin,with one sleeper and A/C
Engine	Make: SINOTRUK
	Diesel 4-stroke direct injection diesel engine
	Engine model: WD615.47, 371 HP
Transmission	HW19710, 10&2R, with PTO
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	VGD95,1×9500 KGS
Front Axle	Steering with doubleT-cross section beam
Rear Axle	MCP16ZG, 2×16000 KGS
Rear Axle	Pressed axle housing, central single reduction with hub reduction
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Brake	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	400L
Cargo Body	5600x2300x1500mm,Floor 8mm, Side 6 mm 20CBM ,Loading 30 tons
Overall Dimension	865025503450mm

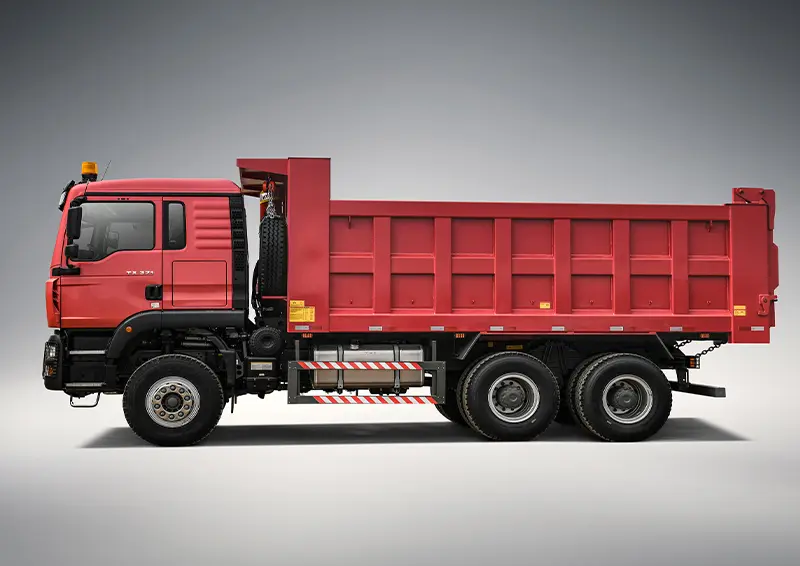

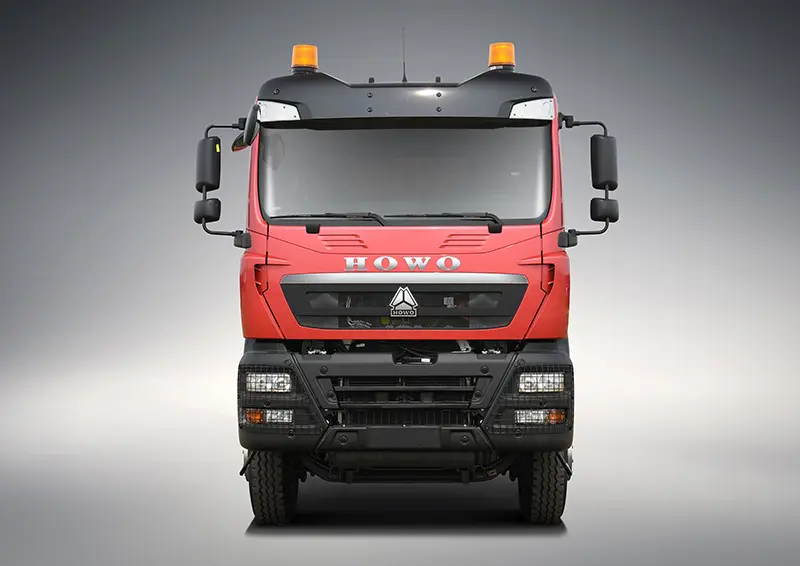

Gallery

The Howo Tx 6×4 dump truck is a heavy-duty vehicle designed for efficient transportation and loading of various materials, such as construction debris, gravel, sand, and other bulk goods. This truck features a robust chassis, powerful engine, and a sturdy dump body that allows for easy unloading of its cargo.
