Howo 5t Light Crane Truck

Model:
ZZ1107G3815C1
Engine:
116HP
Maximum speed:
95 km/h
Crane loading Capicity:
3-5Ton
Request for Price
Overview

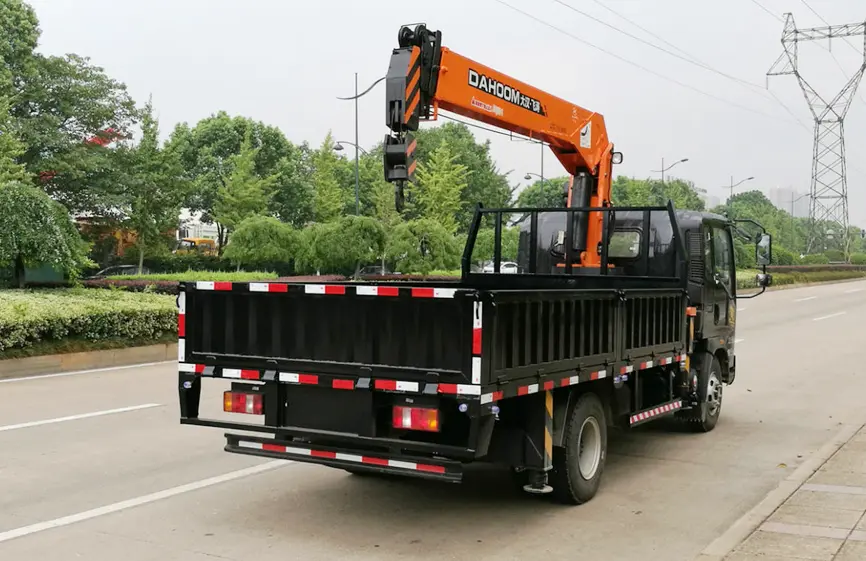

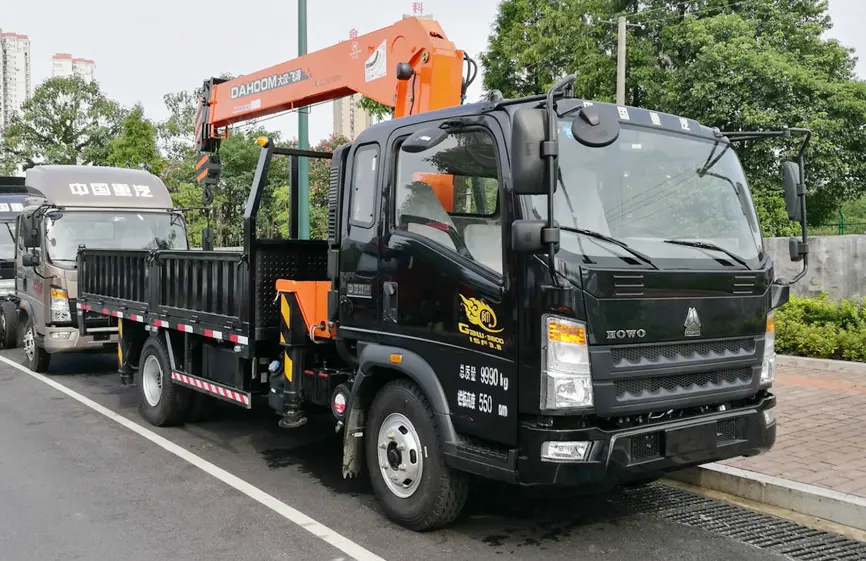

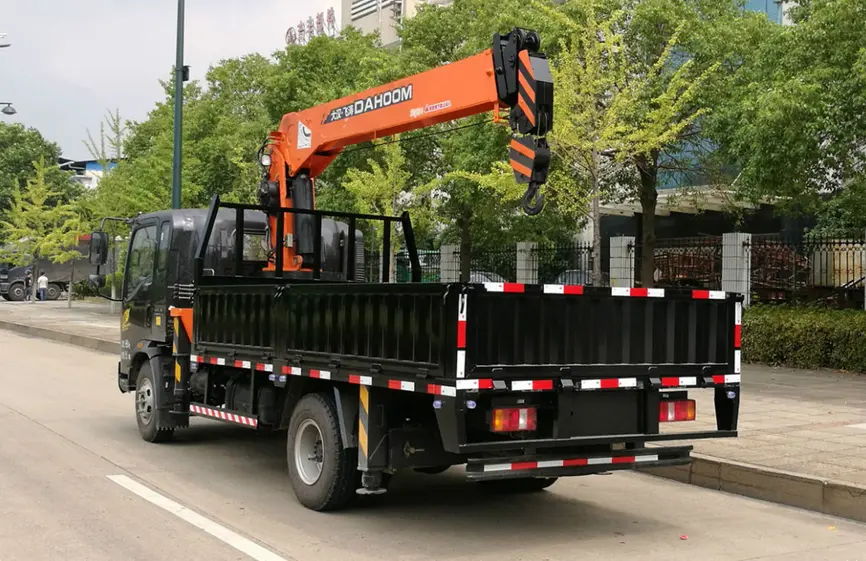

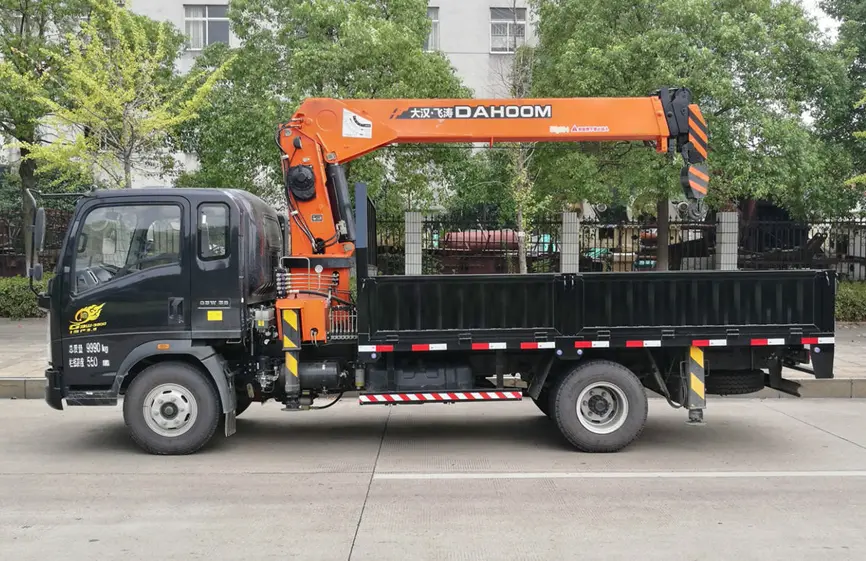

Sinotruk Howo 5t Light Crane Truck
Sinotruk Howo 5t Light Crane Truck

As a star product of SINOTRUK, the Sinotruk Howo 5t Light Crane Truck has demonstrated excellent maneuverability in narrow urban areas and rugged construction sites. Its core advantage lies in its integrated lifting system: a articulated boom crane with a maximum working radius of 8.5 meters, 360 degree rotation, and a truck rated maximum load of 5 tons, meeting the needs of various scenarios.

Sinotruk Howo 5t Light Crane Truck-3
Sinotruk Howo 5t Light Crane Truck: Intelligent Operation Experience
Sensitive response: The pilot proportional control valve has a responsive and flexible action, allowing for easy release and operation
Accurate positioning: Smooth movement, precise positioning, capable of completing high difficulty and high-precision lifting tasks
Fuel saving: The crane weighs 500-1000 kilograms less and can be lifted while the engine is idling, saving 30% fuel
Easy to use: The crane has a low failure rate, and a large number of maintenance free designs are adopted. Maintenance is economical and simple, reducing usage costs by 30%
Worry free: The service is timely and attentive, and any problems can be resolved by phone, saving maintenance costs by 30% -50%
Strong homework ability: super strong lifting capacity, ultra long lifting range, increased homework ability by 10% -20%
Continuous operation: It can work continuously in high temperature and heavy load environments, increasing work efficiency by more than 30%
Ultra long lifespan: High reliability, with a service life that is 50-100% longer than the same length
Specifications

Model

ZZ1127G5215C1

Engine

Manufacturer: YUCHAI

Diesel:4-strote direct injection,6-cylinder in-line with water cooling, turbo-charging and intercooling diesel engine

Max output:160HP

Transmission

Model: DC6J65TC,6F&1F

Front axle

3.6Ton

Rear axle

8 Ton

Steering

LHD

Brake system

Exhaust braking and spring energy storage braking

Tire

10.00R20 Radial tire

Cargo body

6000x2300x600mm, with SQ6.3ZK2Q crane, with Remote control system

Cabin

2080 one and half row cabin with A/C

Size

wheelbase

5200mm

Front/Rear overhang

1240/2555mm

Approach / Departure angle

27/16

DIMENSION(Lx W x H)

9295x2400x3600mm
