Sinotruk Howo T7H 8x4 Mixer Truck

Drive type:
8x4
Series:
HOWO T7H
Engine model:
MC11.44-50 (D20 MAN)
Environmental class:
Euro II-Euro V
Engine variant power:
300-540PS
Up-body configuration :
18-28CBM
Buy The Truck
Overview
03

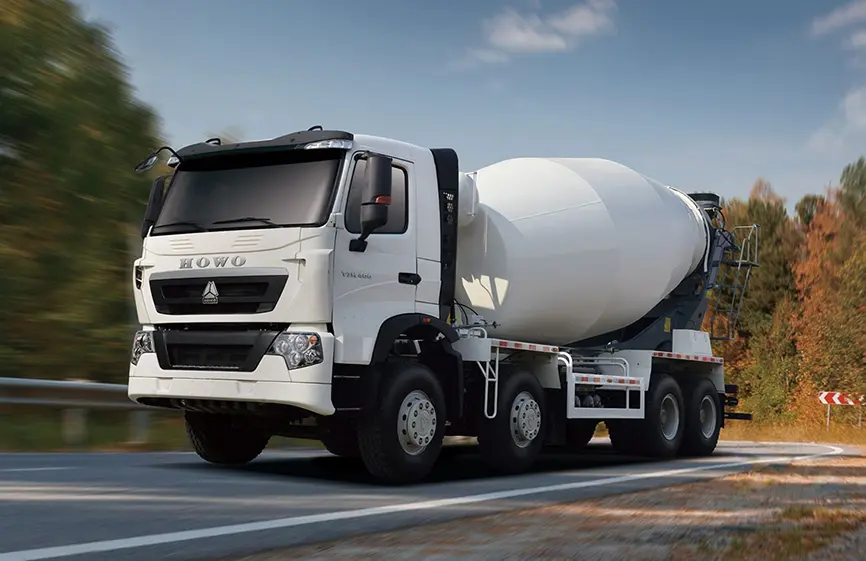

HOWO T7H 8X4 MIXER TRUCK

Howo T7H Mixer Truck, developed by SINOTRUK on the basis of HOWO series trucks and through matching the MAN relevant assemblies and parts. HOWO-T7 inherit the wonderful characteristics of HOWO brand to adapt to various working conditions and high performance-price ratio requirements in China and other developing countries and reach the excellent level of technical indices such as reliability, economy and safety etc.

15
HOWO T7H 8X4 MIXER TRUCK

Powerful Engine:

Equipped with a high-efficiency, Euro III or Euro V compliant diesel engine (e.g., WD615 or MC series), delivering strong power output (typically 336–371 HP) for excellent performance under heavy loads and challenging terrain.

The 8×4 (four-axle, dual rear tandem drive) setup ensures superior traction, stability, and load distribution, making it ideal for rough construction roads and heavy-duty operations.
Reinforced Chassis:

11
HIGH COMFORTABLE

Instrument switches and door switches are laid out reasonably. Optimized four-point suspended suspension in cab, air seats with waist cushion and the slat wide berth make users to enjoy the driving pleasure of international and most high-end heavy trucks.Engine and transmission are tuned for optimal fuel economy. The truck is designed for easy maintenance, reducing downtime and operational costs.

Specifications
SINOTRUK HOWO T7H 8X4 MIXER TRUCK
Model UNIT 3m³ 6m³ 8m³ 9m³ 10m³ 12m³ 14m³
Mixer Type / Dry/Wet
Geometric Volume of Drum 4.45 9.6 11.8 14.4 14.4 18.4 20.4
Material of Drum&Blades / Q345
Inclination Angle for Drum / 16 15 16 13 13.5 12 12
Padding Rate % 67.4 63.8 67.8 62.5 69.4 65.2 68.6
Residual Rate % <0.2
Charging Speed m³/min ≧3
Discharging Speed m³/min >1
Mixing Speed r/min 0-14 2月14日
Hydraulic Pump / Interpump Rexroth
Hydraulic Motor / Interpump Rexroth
Reducer / Lead374 ZFP4300 ZFP5300
Radiator / KT18
Capacity for Water Tank L 240 350 450
Water Supply / Air/Elecrtical Pump
Slump Range mm 50-210
Water Supply Pressure Mpa 0.2 0.3
Overall Dimension(L*W*H) mm 3968*1920*2065 5414*2400*2446 5800*2500*2816 6640*2495*2652 6190*2600*2696 7500*2600*2870 8000*2450*2906
