HOWO TX 8X4 Concrete Mixer Tanker Truck

Series:
HOWO TX
Engine model:
MC11.43-30
Environmental class:
Euro II-Euro V
Engine variant power:
300-440PS
Up-body configuration :
12-16CBM
Request for Price
Overview
10

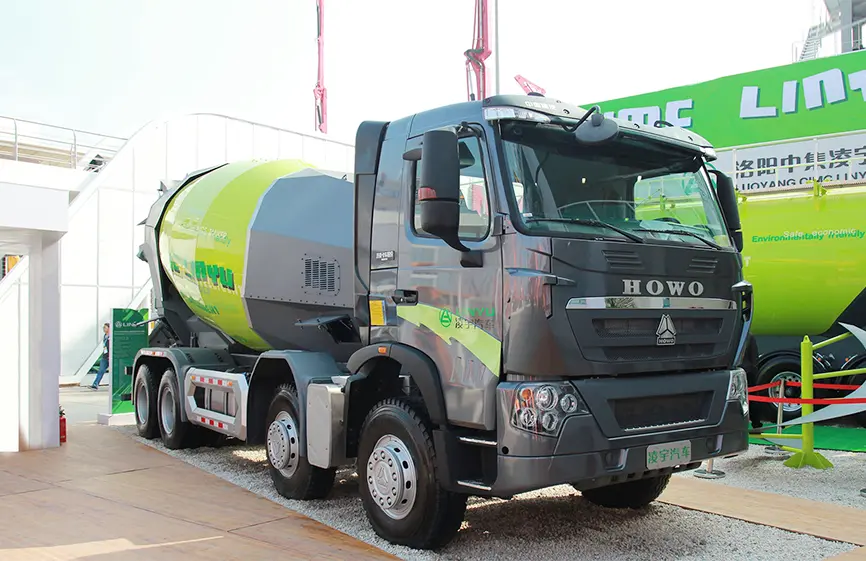

SINOTRUK HOWO TX 8X4 Concrete Mixer Tanker Truck

Advanced Mixing System: Sinotruk Howo TX 8×4 Mixer Truck is equipped with a high-performance mixing system that ensures thorough and consistent mixing of concrete materials. The system utilizes advanced agitators and paddles to achieve optimal mixing results, reducing wastage and improving overall efficiency.

Large Capacity Hopper: Sinotruk Howo TX 8×4 Mixer Truck features a spacious hopper that can accommodate large volumes of concrete materials. This allows for extended operation times without the need for frequent refills, increasing productivity and reducing downtime.

15
SINOTRUK HOWO TX 8X4 Concrete Mixer Tanker Truck

Robust Chassis and Suspension: Sinotruk Howo TX 8×4 Mixer Truck is built on a sturdy chassis with an advanced suspension system, ensuring stability and comfort during transportation. The robust construction also provides excellent durability, allowing the truck to withstand the rigors of daily use in demanding construction environments.

Powerful Engine and Transmission: Sinotruk Howo TX 8×4 Mixer Truck is powered by a powerful engine paired with an efficient transmission system, providing ample power for hauling heavy loads and navigating challenging terrain. The fuel-efficient engine design helps reduce operating costs and emissions, making the TX mixer truck an environmentally friendly choice for construction projects.

11
HIGH COMFORTABLE

Instrument switches and door switches are laid out reasonably. Optimized four-point suspended suspension in cab, air seats with waist cushion and the slat wide berth make users to enjoy the driving pleasure of international and most high-end heavy trucks.Engine and transmission are tuned for optimal fuel economy. The truck is designed for easy maintenance, reducing downtime and operational costs.

Specifications

SINOTRUK HOWO TX 8X4 Concrete Mixer Tanker Truck

Cab: TX-F (1-Sleeper), new front face LHD

Engine:WD615.47,371hp, EUROⅡ

Transmission: HW19710 (10-Forward, 2-Reverse),

Front axle: VGD95,

Drive axle: MCX16ZG

Steering: BOSCH

Fuel tank:400L

Tires:12.00R20, with one spare tire

With high bumper

10/12/14/16 cubic meter tank, Brand PMP pump,motor and reducer

Dimension(L×W ×H)(mm)

11400*2600*3950mm

agitation tank dimension(m³)

10m³,12m³,14m³,16m³

Approaching angle/Departure angle(°)

16/26

Overhang(front/rear) (mm)

1500/2240

Wheel base (mm)

3800+1350

Max speed(km/h)

90

Front Axle Weight(kg)

9000Kg

Rear Axle Weight(kg)

16000Kg*2

Engine

Model

WD615.47

Fuel type

Diesel

Displacement (ml)

9.726L

Power(kw)

273Kw(371HP)

Emission

EURO 2

Fuel tanker capacity (L)

400

Transmission

Model

HW19710

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

BOSCH(LHD)

Front axle

Steering with double T-cross section beamVGD95

Rear axle

Cast axle housing, central double reduction with differential locks between axles and wheels,MCX16ZG

Electrical system



Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Other

Reversing buzzer; Rear towing hook; Fire Extinguisher; Intercooler protection device;



FAQ
Are you a dealer or a factory?
We are the official SINOTRUK factory.
I want to ship the truck by container. Is it possible?
Yes, it is possible. However, the truck needs to be disassembled for loading, and you will need to reinstall it in your country.
How is the product quality?
All trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to become your agent in my country. Is that acceptable?
Yes, it is possible. If your purchase volume is large, we can consider it. A yearly order of 200 units is acceptable.
How is your company's service, especially after-sales service?
SINOTRUK has many after-sales service stations worldwide, and spare parts are widely available in local markets.
What are your payment terms?
You may choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: within 30 working days after receiving the deposit.
