Sitrak C7H 8x4 Concrete Mixer Truck

Model:
ZZ5316GJBV306ME
Series:
Sitrak C7H
Engine model:
MC11.44-50 MAN D20
Environmental class:
Euro-5
Engine variant power:
540HP
Transmission:
Automated
Buy The Truck
Overview

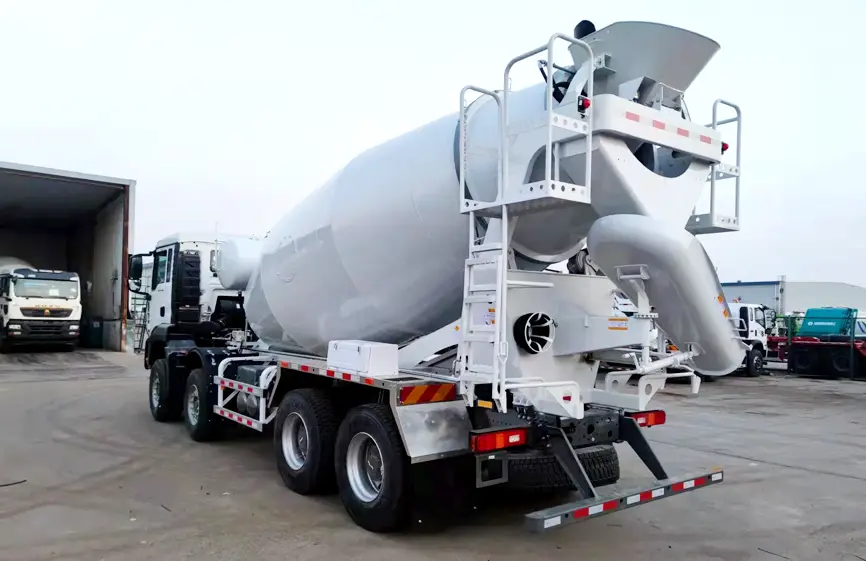

Sinotruk Sitrak C7H 8×4 Mixer Truck-1
Sinotruk Sitrak C7H 8x4 Concrete Mixer Truck

The Sinotruk Sitrak C7H 8×4 Concrete Mixer Truck is a powerful and reliable special-purpose vehicle designed for transporting and delivering concrete mixtures to construction sites. Thanks to Sinotruk Sitrak C7H 8×4 Concrete Mixer Truck robust design, high level of comfort and economical engine, this model is ideal for work in the most difficult conditions.

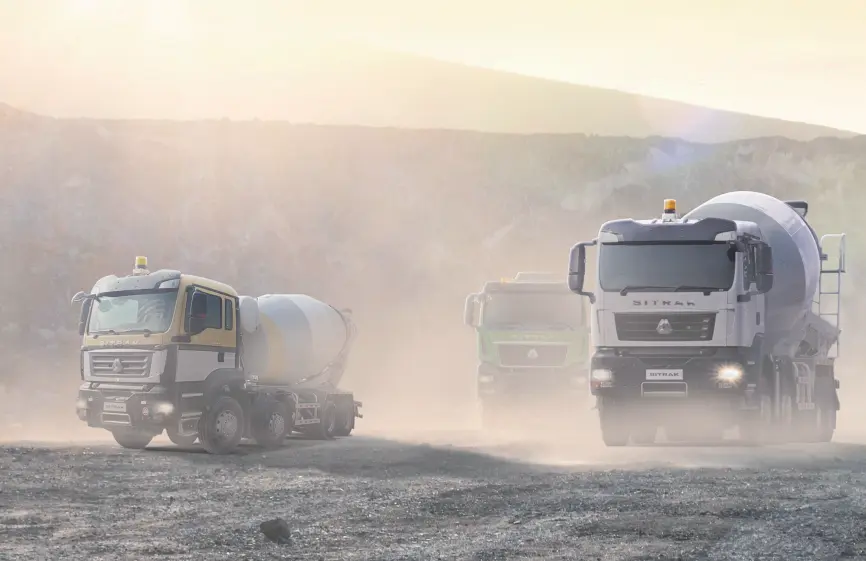

Sinotruk Sitrak C7H 8×4 Mixer Truck-2
Sinotruk Sitrak C7H 8x4 Concrete Mixer Truck
  • Powerful and economical engine: Sinotruk Sitrak C7H 8×4 Concrete Mixer Truck is equipped with a high-performance diesel engine, which provides excellent traction and low fuel consumption. This makes it ideal for work in high-load conditions.
  • Robust and reliable design: The 8×4 chassis provides stability and high load capacity, which is especially important when transporting heavy concrete mixtures. High-quality materials and a well-thought-out design guarantee durability even in the most difficult operating conditions.
  • Versatility and productivity: The Sinotruk Sitrak C7H 8×4 Concrete Mixer Truck is capable of handling various types of concrete mixtures, ensuring their uniform mixing and delivery to the site without loss of quality.
  • Ease of Maintenance: The Sinotruk Sitrak C7H 8×4 Concrete Mixer Truck is designed with ease of maintenance in mind, reducing downtime and lowering repair costs.
Specifications
Truck name Sinotruk Sitrak C7H 8×4 Concrete Mixer Truck
Model ZZ5316GJBV306ME
Overall dimensions (L x W xH) 8860x2490x3880 mm
Wheelbase 3825+2022 mm
Tires 385/65R22,5 / 315/80R22,5
Engine Engine MC11.44-50 MAN D20
Engine power 440 hp
Transmission TRAXON ZF12TX2620TD
Cabin C7H-F with 1 berth (MAN license).
Cabin spring suspension with shock absorbers
Electric windows for side doors
Air conditioner
Mechanical sunroof
MP5 radio
Comfortable driver’s seat with air suspension
Electric cabin lift
 Mixing Equipment Working volume of the drum is 12 m3
The mixer drum has one hatch for cleaning.
Mixer spirals made of wear-resistant steel 4 mm
Diameter of loading hopper 650 mm
Hydrostatic drive from chassis engine
Gearbox ZF P5300
Bosch Rexroth A4VTG 90 hydraulic pump
Bosch Rexroth A2FM 90 hydraulic motor
Feed rate, not less than 3 cubic meters/min
Water tank 800 l. with pneumatic unloading and heating
