Sitrak C7H 440 6x4 Concrete Mixer Truck

Model:
ZZ5256GJBV384ME
Series:
Sitrak C7H
Engine model:
MC11.44-50 (D20 MAN)
Environmental class:
Euro-5
Engine variant power:
440HP
Transmission:
Automated
Buy The Truck
Overview

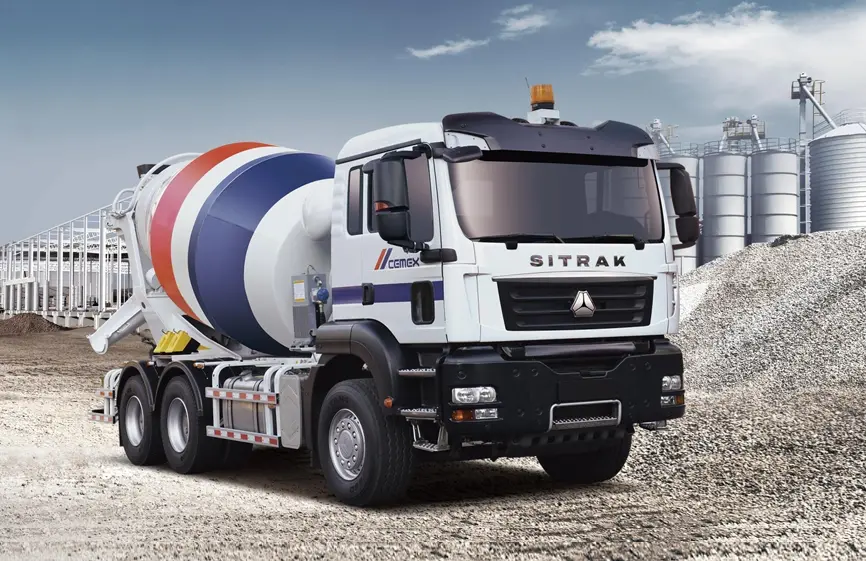

Sitrak C7H 440 6×4 Concrete Mixer Truck -2
Sitrak C7H 440 6x4 Concrete Mixer Truck

As a representative of Sinotruk’s high-end heavy-duty trucks, the Sitrak C7H 440 6×4 Concrete Mixer Truck, leveraging German MAN technology, has set a new benchmark in concrete transportation. Equipped with a 440-horsepower MC13 engine and an HW25712XSTL transmission, the Sitrak C7H 440 6×4 Concrete Mixer Truck maintains powerful power even in complex working conditions.

Sitrak C7H 440 6×4 Concrete Mixer Truck-4
Sitrak C7H 440 6x4 Concrete Mixer Truck Chassis design

The Sitrak C7H 440 6×4 Concrete Mixer Truck features a reinforced 6×4 drive structure and standard ABS, ASR, and EBL systems. This, combined with a unique three-dimensional flow design in the mixing drum, ensures that 12m³ of concrete is evenly distributed and prevents solidification during transportation.

Sitrak Truck-2
Sitrak C7H 440 6x4 Concrete Mixer Truck Intelligent Aspects

In terms of intelligence, the Sitrak C7H 440 6×4 Concrete Mixer Truck is equipped with a 7-inch LCD instrument panel and smart terminal, enabling 18 digital management functions, including mixer drum speed monitoring and fault warnings. The Sitrak C7H 440 6×4 Concrete Mixer Truck’s cab has obtained TÜV Rheinland certification, and its four-point suspension design ensures NVH performance comparable to that of a passenger car, ensuring that this 31-ton SINOTRUK SITRAK C7H 8×4 Mixer Truck combines power and comfort.

Specifications
Truck name Sitrak C7H 440 6×4 Concrete Mixer Truck
Model ZZ5256GJBV384ME
Overall dimensions (L x W xH) 8860x2490x3880mm
Wheelbase 3825+2022 mm
Tires 385/65R22,5/315/80R22,5
Engine Engine MC11.44-50 MAN D20
Engine power 440 hp
Transmission TRAXON ZF12TX2620TD
Cabin C7H-F with 1 berth (MAN license).
Cabin spring suspension with shock absorbers
Electric windows for side doors
Air conditioner
Mechanical sunroof
MP5 radio
Comfortable driver’s seat with air suspension
Electric cabin lift
 Mixing Equipment Working volume of the drum is 12 m3
The mixer drum has one hatch for cleaning.
Mixer spirals made of wear-resistant steel 4 mm
Diameter of loading hopper 650 mm
Hydrostatic drive from chassis engine
Gearbox ZF P5300
Bosch Rexroth A4VTG 90 hydraulic pump
Bosch Rexroth A2FM 90 hydraulic motor
Feed rate, not less than 3 cubic meters/min
Water tank 800 l. with pneumatic unloading and heating
