Sinotruk Howo 336 TX 6x4 Dump Truck

Model:

ZZ3257V434GF1

Series:

Sinotruk Howo TX

Engine model:

Weichai WP10H400E62

Transmission:

Sinotruk HW19712CL

Engine variant power:

336HP

Up-body configuration :

18-28CBM

Buy The Truck

Overview

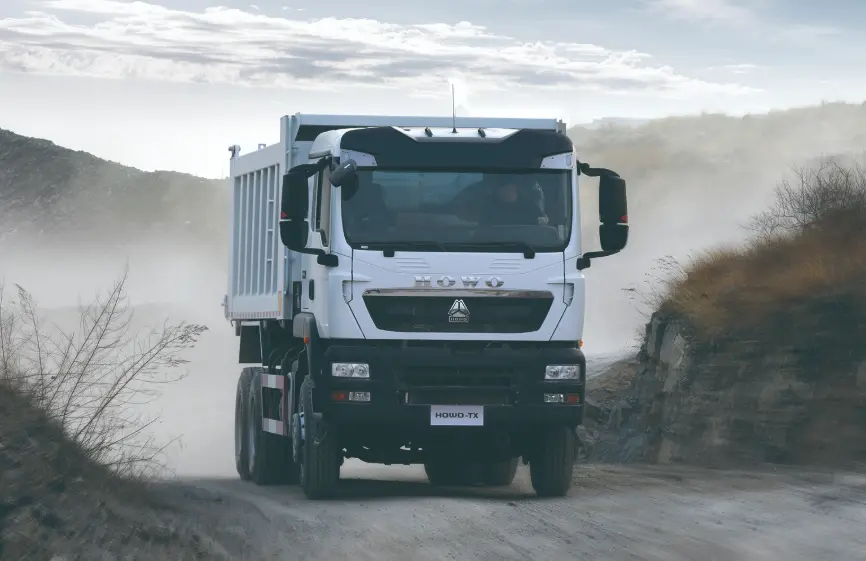

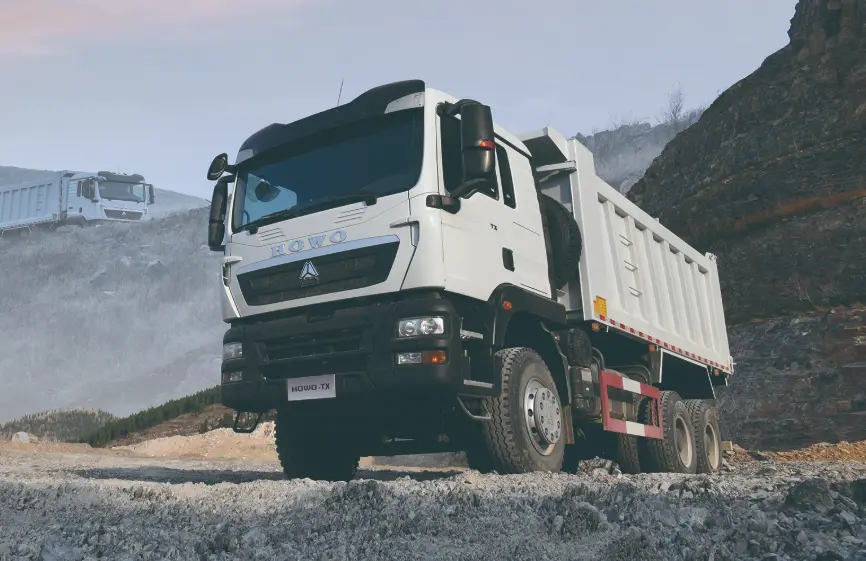

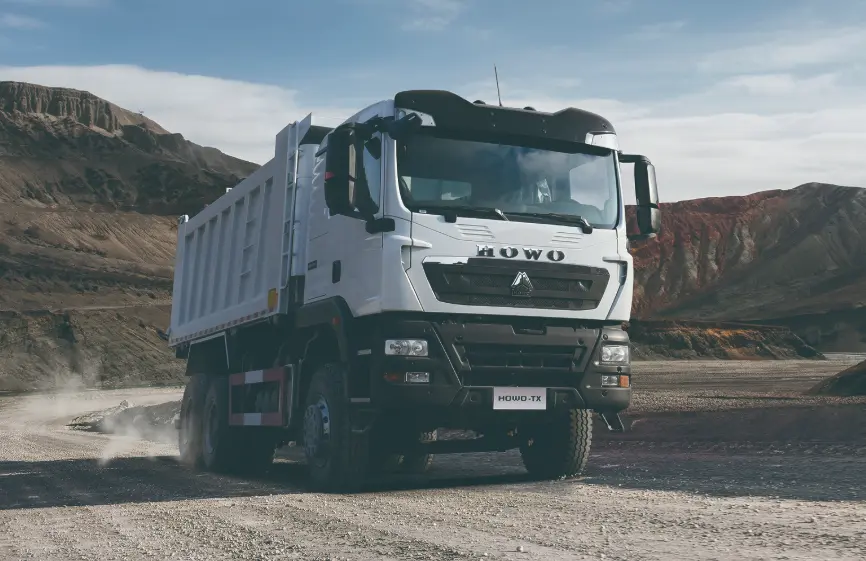

Sinotruk Howo 336 TX 6x4 Dump Truck

Sinotruk Howo 336 TX 6×4 Dump Truck is a new flagship engineering dump truck model developed by Sinotruk based on the classic Howo engineering dump truck. It has upgraded power and configuration, matched with MAN Power and Weichai series high-end powertrains, synchronized with German MAN manufacturing and quality standards, and verified under all working conditions.

Sinotruk Howo 336 TX 6x4 Dump Truck

Sinotruk Howo 336 TX 6×4 Dump Truck‘s six-wheel design provides excellent stability and load carrying capacity, whether in urban construction or mining operations, this Sinotruk Howo 336 TX 6×4 Dump Truck demonstrates exceptional work efficiency. With its sturdy body structure and advanced hydraulic tipping system, the Sinotruk Howo 336 TX 6×4 Dump Truck excels in heavy-duty transportation.

Specifications

Truck Name	Sinotruk Howo 336 TX 6×4 Dump Truck
Model	ZZ3257V434GF1
Driving Form	6X4
Cabin	HW TX cabin ,1 sleeper with AC
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371 HP
Transmission	HW19710, 10F & 2R, with PTO
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1×9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	5600x2300x1500mm,Floor 8mm, Side 6 mm 20CBM ,Loading 40 tons
Overall Dimension	850025503450mm

Gallery

As a best-selling product in the urban construction sludge market, Sinotruk Howo 336 TX 6×4 Dump Truck always adheres to the customer-centered approach and continues to create value for customers.
